LEVC VN5 2021 - Page 60

Electrical
3
S023074 PA1
2020-05-12
59

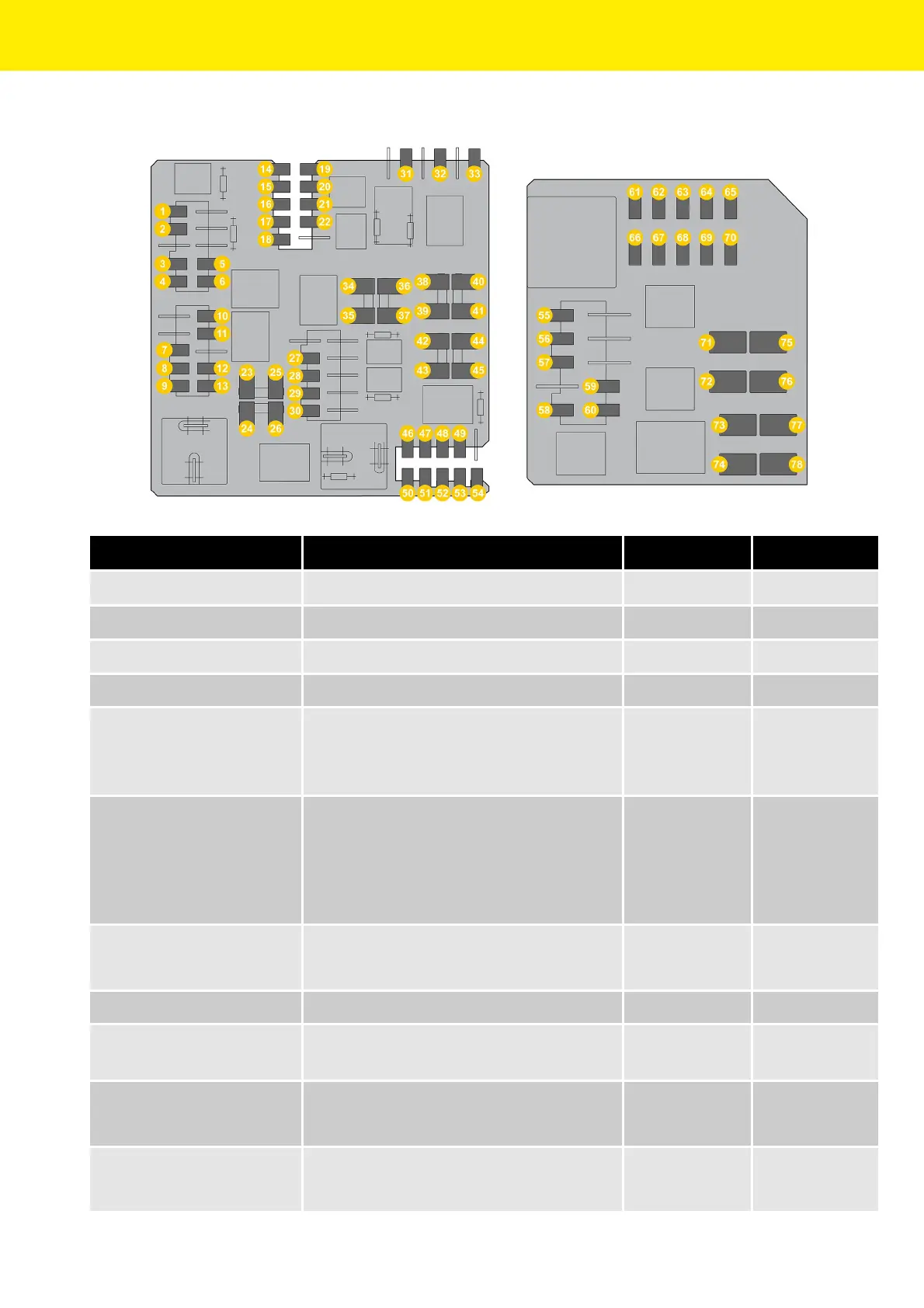

Fuses - Engine Compartment
Fuse Number Function Type Amp Rating
BF 01 - Micro -
BF 02 - Micro -
BF 03 - Micro -
BF 04 - Micro -
BF 05 Inverter electric rear axle drive
module
Inverter generator module
Micro 5
BF 06 High voltage coolant heater
Air conditioning control module
HVAC cooling shut off valve
Chiller shut off valve
Micro 5
BF 07 Battery cooling shut off valve
Battery heating shut off valve
Micro 7.5
BF 08 - Micro -
BF 09 Inverter electric rear axle drive
module
Micro 10
BF 10 High voltage battery
Inverter generator module
Micro 10
BF 11 On board charger 1
On board charger 2
Micro 10
