1.4 Connectors

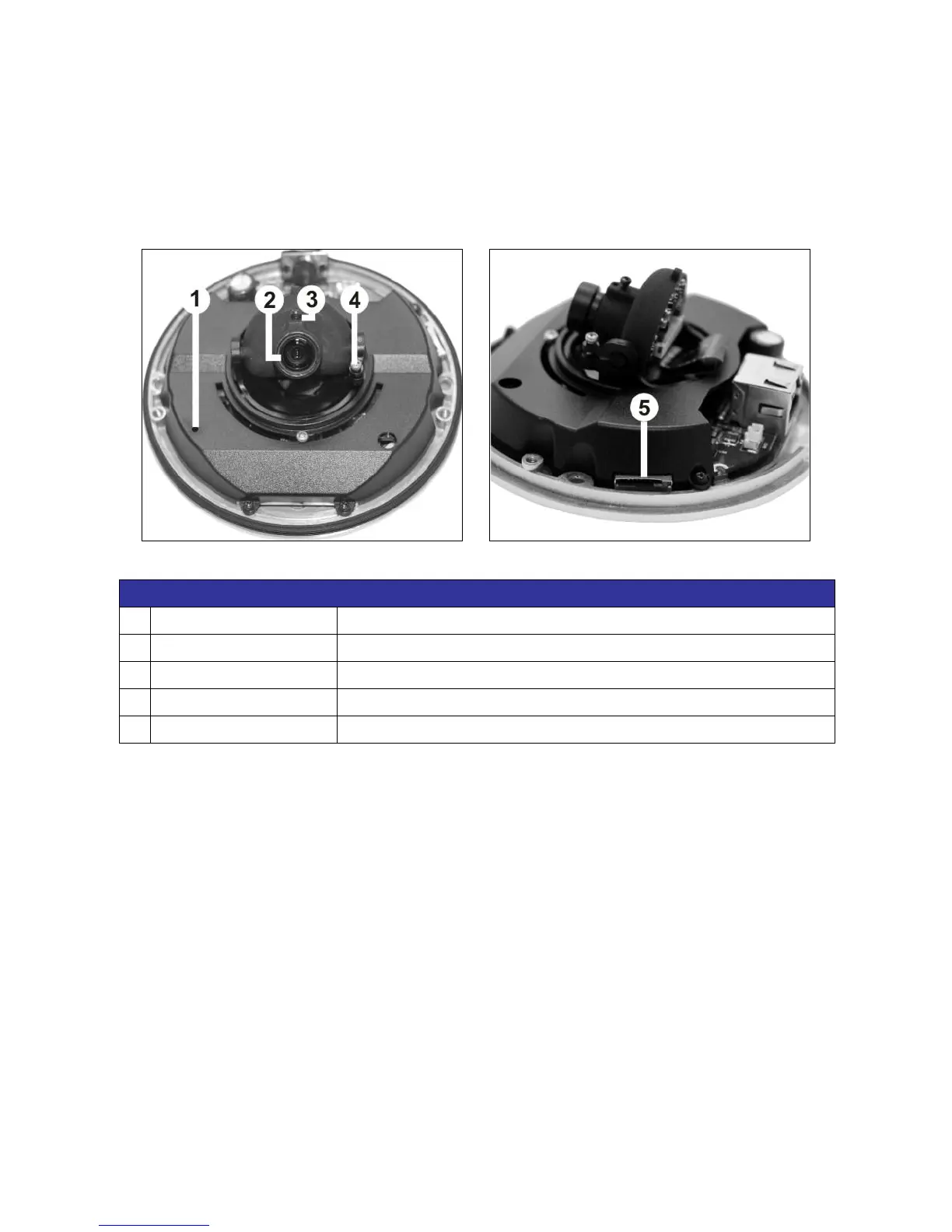

The diagram below shows the IP Camera’s reset button and various connectors. Definition
for each connector will be given as follows.
Designation Description
1
Reset Button
Restore to default setting; press the button with a proper tool
2
Lens
Rotate the lens right/left to adjust focus
3
Focus Fixed Screw
Loosen the screw to adjust the lens
4
Tilt Fixed Screw
Loosen the screw to adjust tilt angle
5
Micro SD Card Slot
Micro SD Card recording.
