4.4.4 Video OCX Protocol
The Video OCX Protocol setting can be found under this path: Streaming> Video OCX
Protocol.

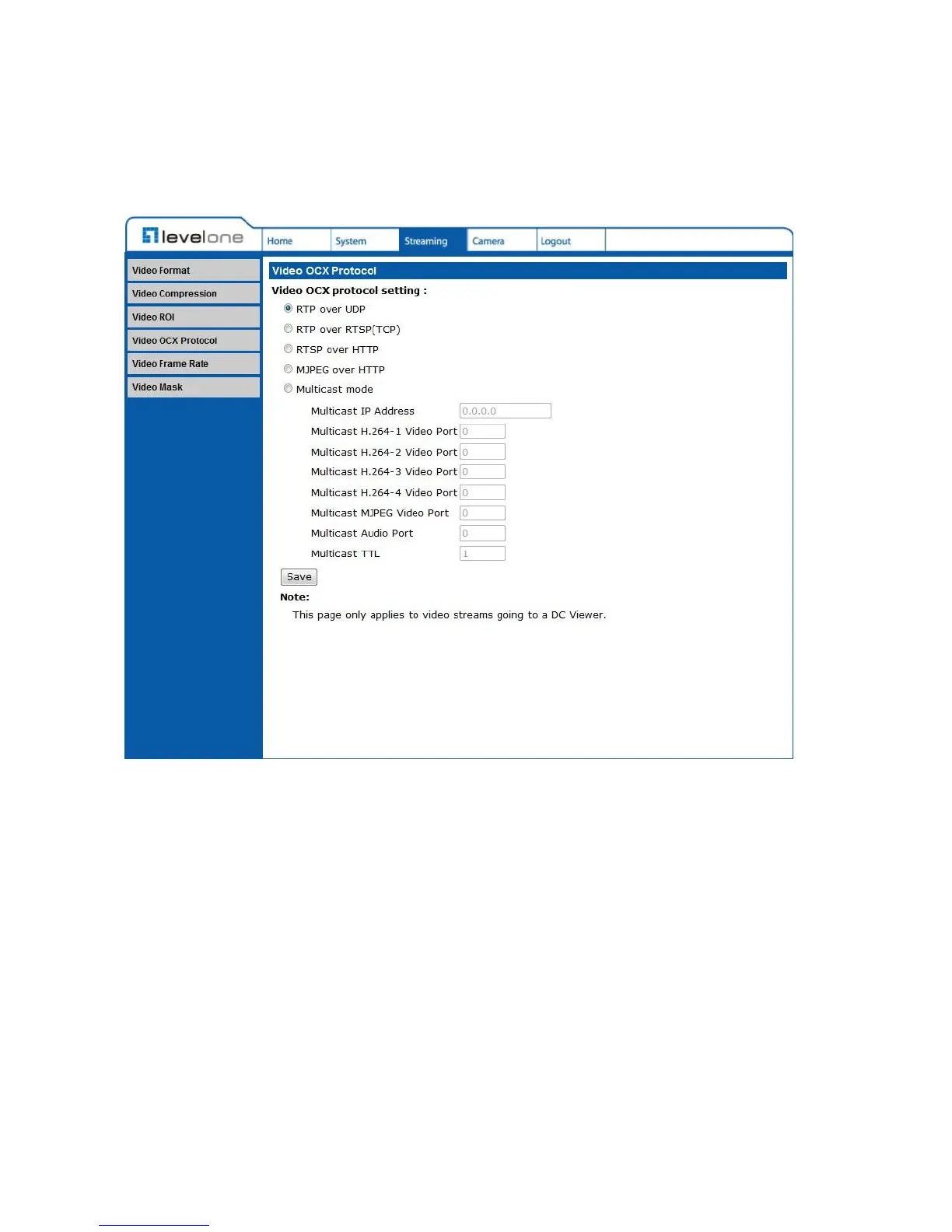

In the Video OCX protocol setting page, users can select RTP over UDP, RTP over RTSP
(TCP), RTSP over HTTP or MJPEG over HTTP for streaming video over the network. In the
case of multicast networking, users can select the Multicast mode. Click on <Save> to
confirm the setting.
Video OCX protocol setting options include:
 RTP over UDP / RTP over RTSP(TCP) / RTSP over HTTP / MJPEG over HTTP
 Multicast Mode
Enter all required data, including <Multicast IP Address>, <Multicast H.264-1/ H.264-2/
H.264-3/ H.264-4 Video Port>, <Multicast MJPEG Video Port>, <Multicast Audio Port>
and <Multicast TTL> into each blank.
