User Manual of Network Camera
83

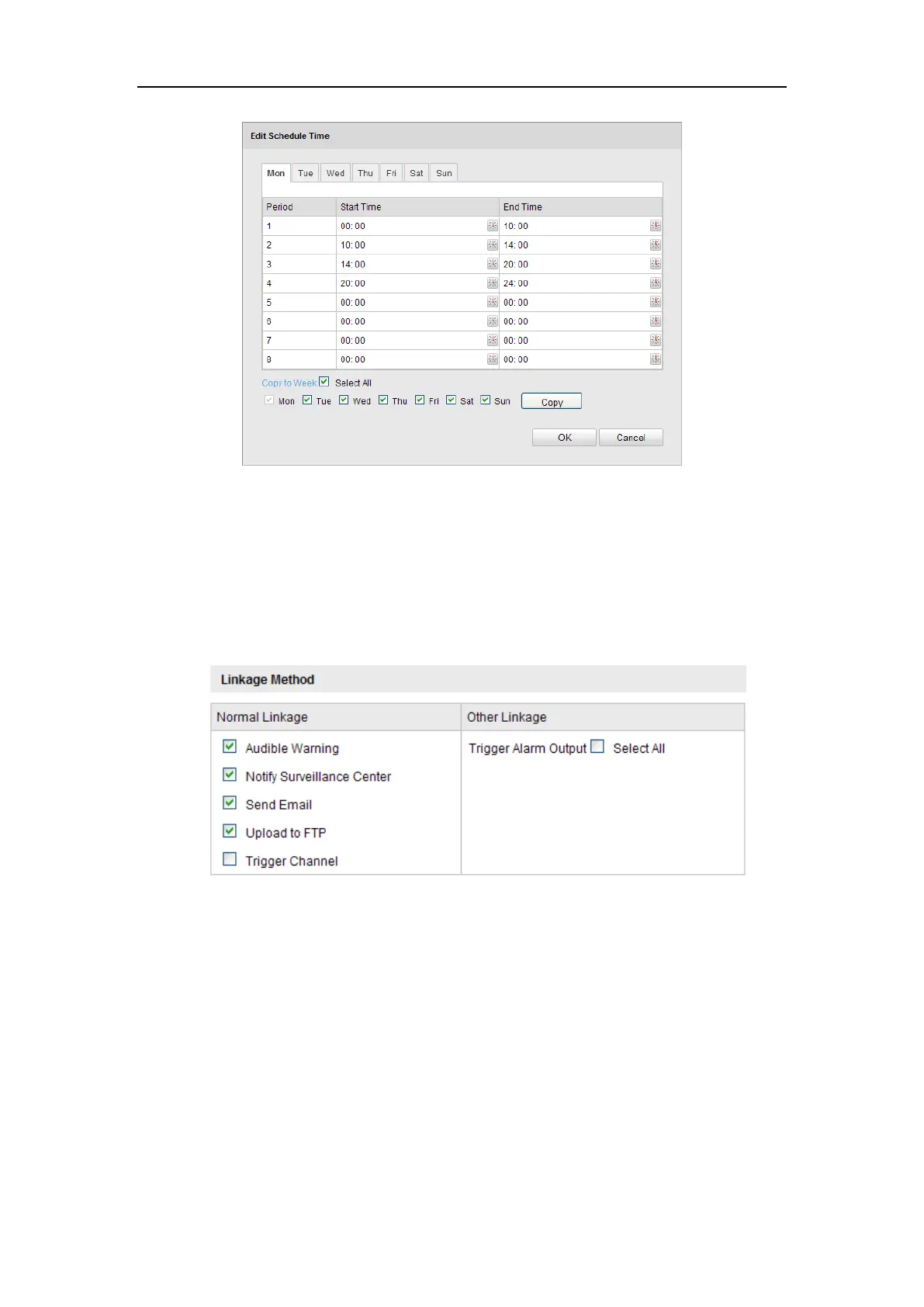

Figure 6-44 Arming Time Schedule
3. Set the Alarm Actions for Motion Detection.
Check the checkbox to select the linkage method. Notify surveillance center,
send email, upload to FTP, trigger channel and trigger alarm output are selectable.
You can specify the linkage method when an event occurs.
Figure 6-45 Linkage Method
⚫ Audible Warning
Trigger the audible warning locally. And it only supported by the device have
the audio output.
⚫ Notify Surveillance Center
Send an exception or alarm signal to remote management software when an
event occurs.
⚫ Send Email
