7.3.3 Video OCX Protocol
The Video OCX Protocol setting can be found under this path: Streaming>
Video OCX Protocol.

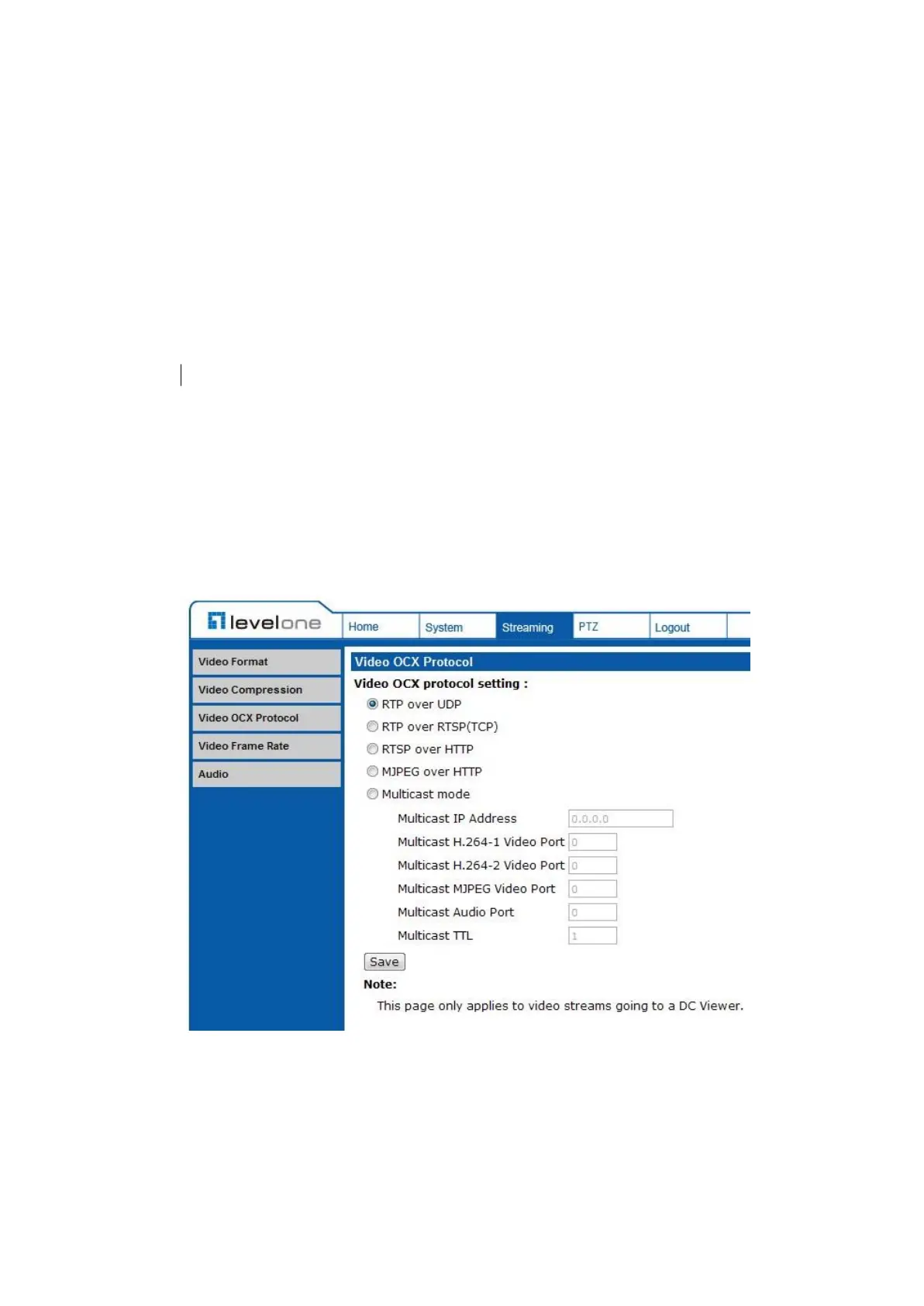

In the Video OCX protocol setting page, users can select RTP over UDP, RTP
over TCP, RTSP over HTTP or MJPEG over HTTP, for streaming media over
the network. In the case of multicast networking, users can select the Multicast
mode.
Video OCX protocol setting options include:
RTP over UDP/ RTP over RTSP(TCP)/ RTSP over HTTP/ MJPEG
over HTTP
Select a mode according to your data delivery requirements.
Multicast Mode
Enter all required data, including <multicast IP address>, <H.264 video
port>, <MJPEG video port>, <Audio Port> and <TTL> into each blank.
Click on <Save> to confirm the setting.
the network. In the case of multicast networking, users can select the Multicast
mode.
