LevelOne FCS-4041 - Apply Alarm I;O; Apply Audio

9
Pin
Definition
7
ALARM_OUT_COM_2
8
GND
9
ALARM_IN_4
10
ALARM_IN_3
11
ALARM_IN_2
12
ALARM_IN_1
Pin
Definition
1
LINE_OUT
2
GND
3
LINE_IN
2.3 Apply Alarm I/O
The network Speed Dome Camera supports 4 digital alarm inputs and 2 digital
alarm outputs. Please make sure the alarm connections are properly wired
before starting to configure alarm related settings on this “Application” page.

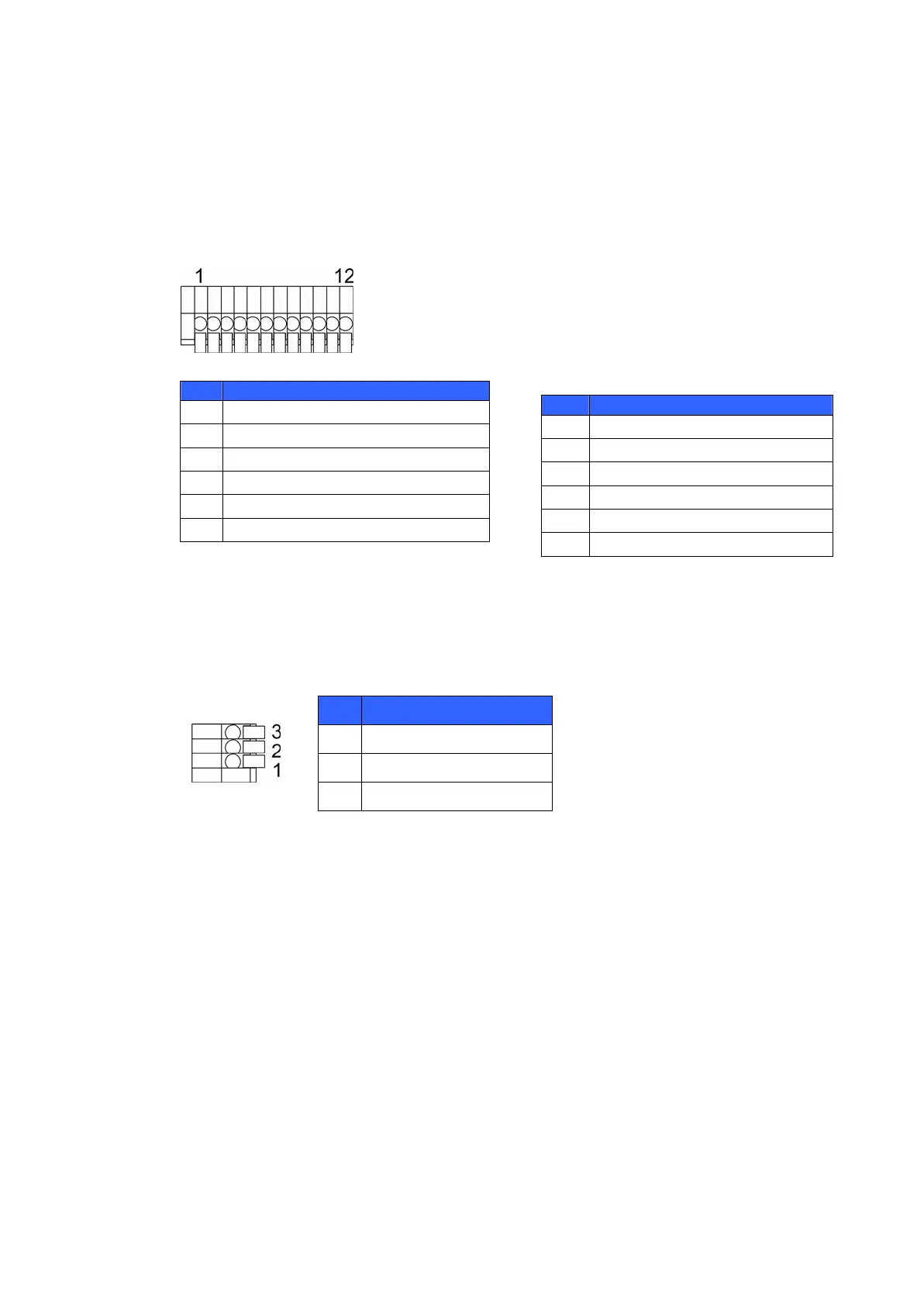

Please refer to the pin definition table below for alarm system wiring.
Pin
Definition
1
ALARM_OUT_NO_1
2
ALARM_OUT_NC_1
3
ALARM_OUT_COM_1
4
GND
5
ALARM_OUT_NO_2
6
ALARM_OUT_NC_2
2.4 Apply Audio
Please refer to the illustrations below to set up the audio according to the Audio
pin definition.
