User Manual for BPS-i100
www.levitronix.com
PL-4036-00, Rev03, DCO# 21-057
12

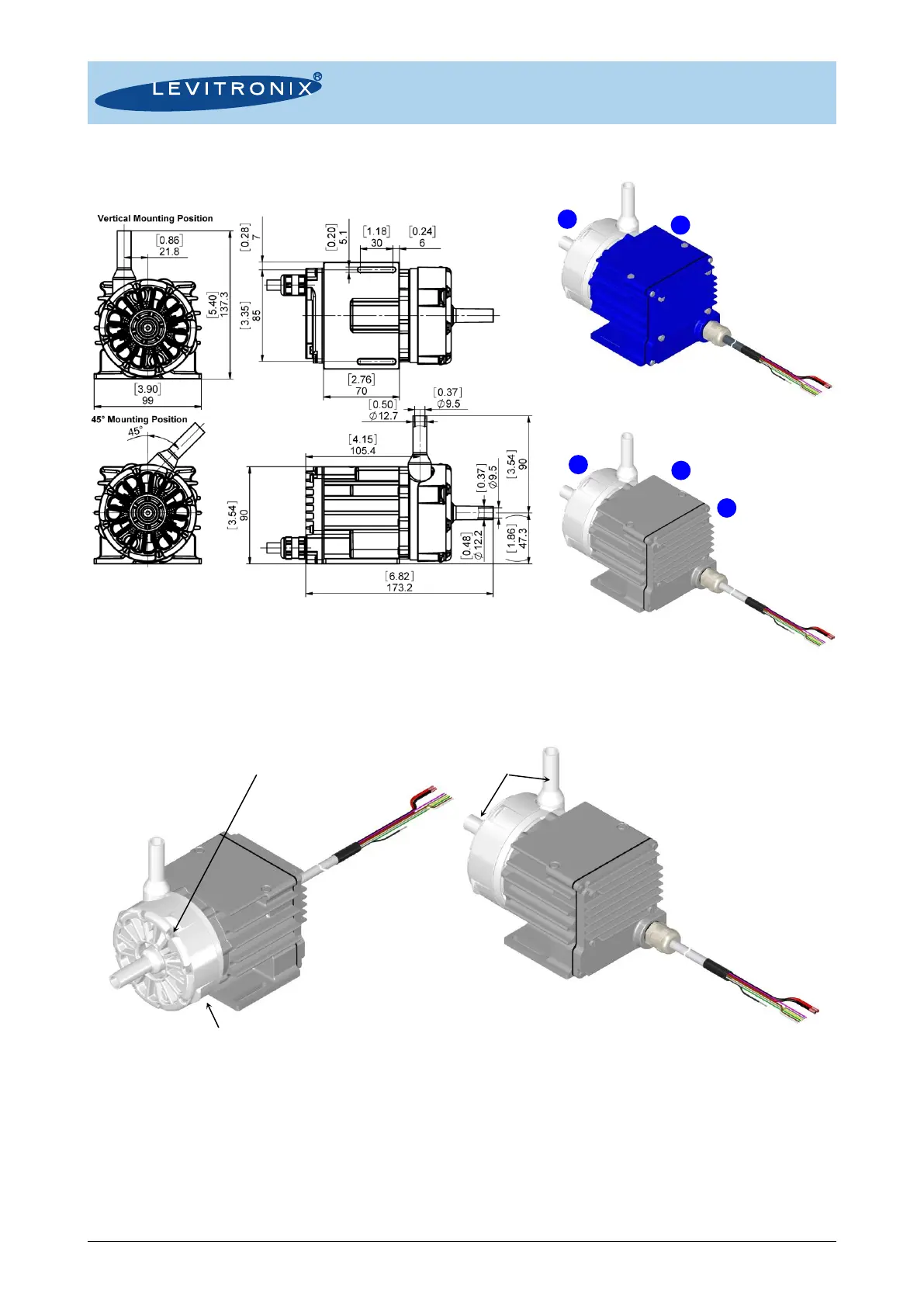

Figure 15: Basic dimensions and description of standard “OEM” models
Figure 16: Basic mechanical specifications of pump head LPP-200.7
(For other configurations refer to the relevant specification drawing)
2a
1
Pump Head
LPP-200.7
Driver IPD-100.1
(Epoxy Coating)
Driver Cable
(PVC with Open Wires)
2b
1
Driver IPD-100.2
(ETFE Coating)
Driver Cable
(FEP with Open Wires)
2f
Driver IPD-100.10
(ETFE Coating
ATEX/IECEx)
Pump Head Inlet and
Outlet Fitting: Tube 1/2
6pcs M4x16 Screws (SS PTFE coated, torque spec. 20 Ncm)
(For inner pump housing)
Tube ½“
8pcs M3x40 Screws (SS PTFE coated, torque spec: 15 Ncm)
(For pump head motor mounting. Pump head can be rotated by 45
degree)
