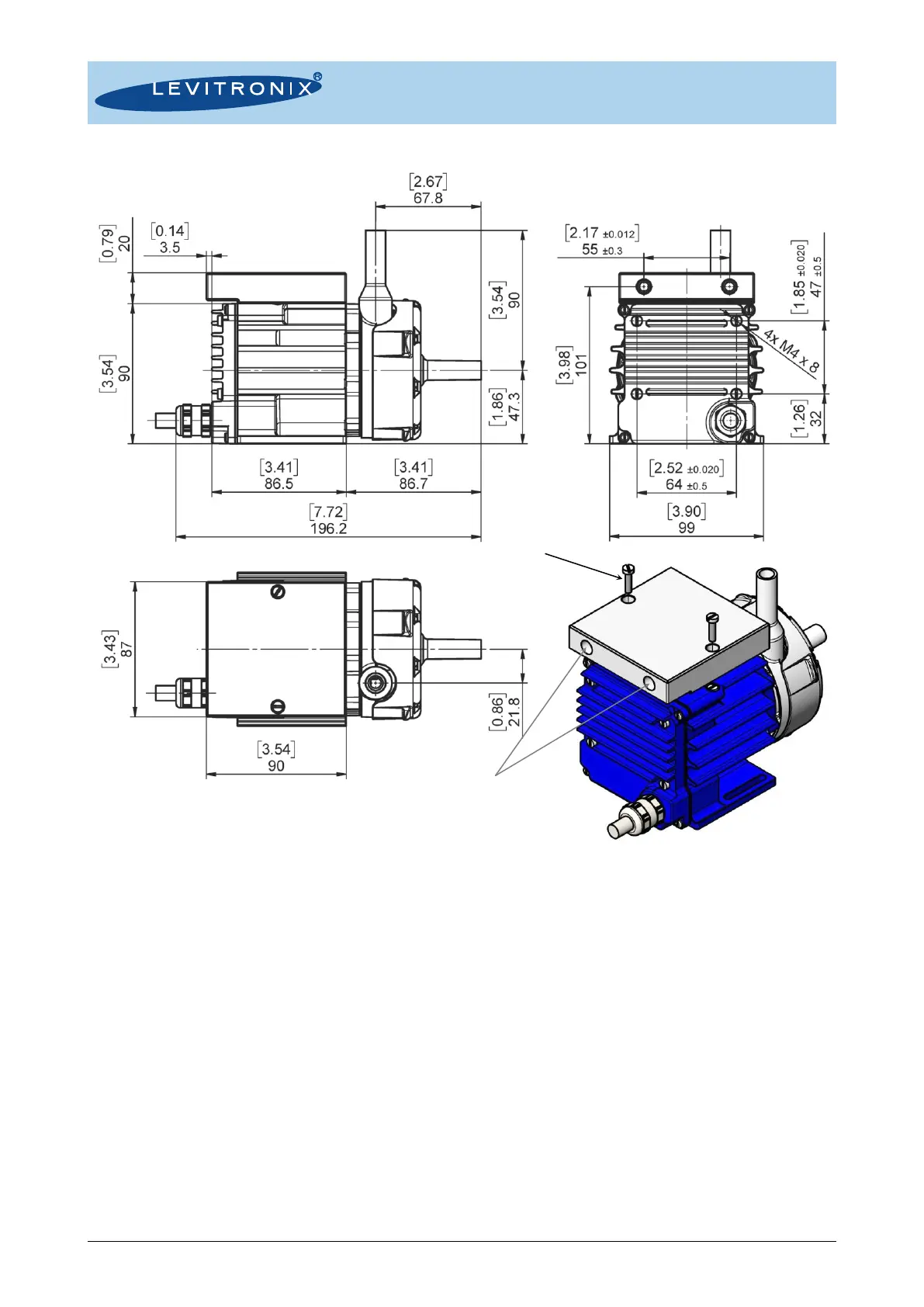

Figure 17: Basic dimensions (in [mm] and [inch]) of water cooling module WCM-i100.1
Note 1: Dimensions are in context with driver IPD-100.1 and pump head LPP-200.7.
Note 2: Non-tolerated dimensions are for reference only. Note 3: For other configurations refer to according drawings.
NPT 1/8” x 6.7 mm
In-/outlet for water
cooling fittings.
Mounting Screws:
2x M4x16mm
Inox A4 PTFE coated
Torque: 50 cNm
Note: remove 2 motor screws
before mounting WCM-100.
