User Manual for BPS-i100
www.levitronix.com
PL-4036-00, Rev03, DCO# 21-057
14
IPS Cable Power ICP-2.1 (for EasyConnect and Stand-Alone drivers)
IPS Cable Signal ICS-1.1 (for EasyConnect drivers)
IPS Cable Signal ICS-1.2 (for EasyConnect and Stand-Alone drivers)
IPS Cable Signal ICS-2.1 (for EasyConnect drivers)

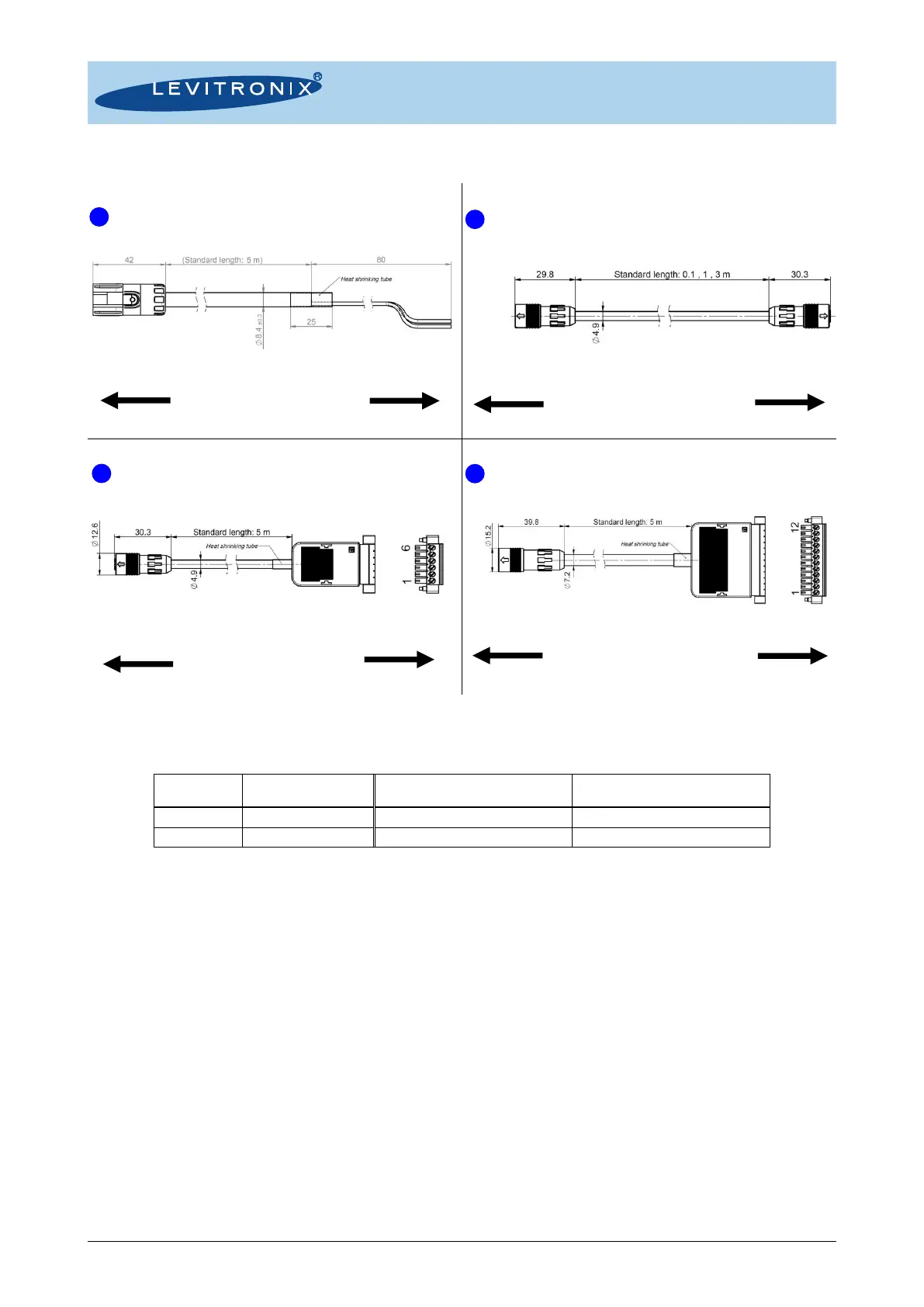

Figure 18: Basic dimensions and specifications of standard cables
Cable
Jacket
Cable OD
Driver Cables
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
< 8 mm
7x Cable OD
15 x Cable OD
PVC
8.4 mm
7x Cable OD
15 x Cable OD
Table 5: Specifications for min. bending radius of driver cable
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!
to AC/DC Supply
to driver DC supply
6
to driver fieldbus IN
7a
to driver fieldbus OUT
7b
to external interface
EasyConnect driver: to fieldbus
Stand-Alone driver: to PLC
Screw type wire
connector
8
to external PLC
to driver PLC
Screw type wire
connector
Wire size: 0.08 mm
2
Wire size: 0.08 mm
2
Wire size: 0.14 mm
2
Wire size: 1.5 mm
2
Signal wires 1-14 are
cut off and not used.
