3.2 Power Supply and Consumption
3.2.1 Power Consumption

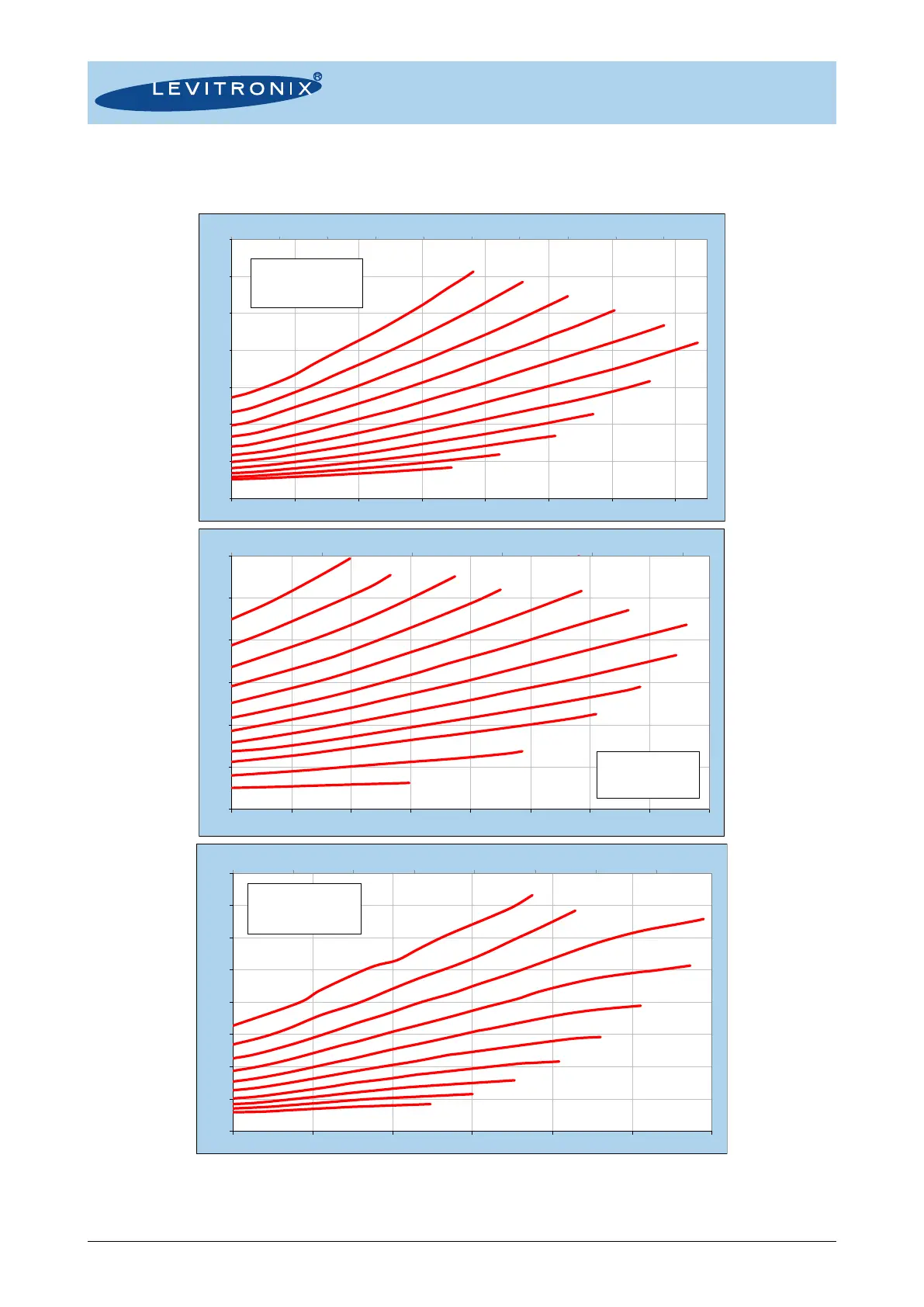

Figure 21: Electrical power consumption
(Measured on OEM model but also representative for EasyConnect and Stand-Alone models)
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
0
5
10
15
20
25
30
35
0 1 2 3 4 5 6 7
[gallons / min]
[Watts]
[liters / min]
5000 rpm
15000 rpm
14000 rpm
13000 rpm
12000 rpm
11000 rpm
10000 rpm
9000 rpm
8000 rpm
7000 rpm
6000 rpm
Specific gravity = 1g/cm
3
Viscosity = 0.7cP
Liquid Temp.: 40°C
Pump Head: LPP-30.1
0.0 0.2 0.4 0.6 0.8 1.0
0
5
10
15
20
25
30
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
[gallons / min]
[Watts]
[liters / min]
5000 rpm
15000 rpm
14000 rpm
13000 rpm
12000 rpm
11000 rpm
10000 rpm
8000 rpm
Specific gravity = 1g/cm
3
Viscosity = 0.7cP
Liquid Temp.: 40°C
Pump Head: LPP-30.3
16000 rpm
17000 rpm18000 rpm
19000 rpm
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5
0
5
10
15
20
25
30
35
40
0.0 2.5 5.0 7.5 10.0 12.5 15.0
[gallons/min]
[Watts]
[liters/min]
5000 rpm
7000 rpm
6000 rpm
14000 rpm
13000 rpm
12000 rpm
11000 rpm
10000 rpm
8000 rpm
9000 rpm
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Liquid Temp.: 40°C
Pump Head: LPP-30.6
«Standard»
«High Pressure»
«High Flow»
