Two Fieldbus connectors (IN and OUT) allow to setup arrays of multiple pumps. Therefore, serial pumping
configurations as shown in Figure 6 can be realized.

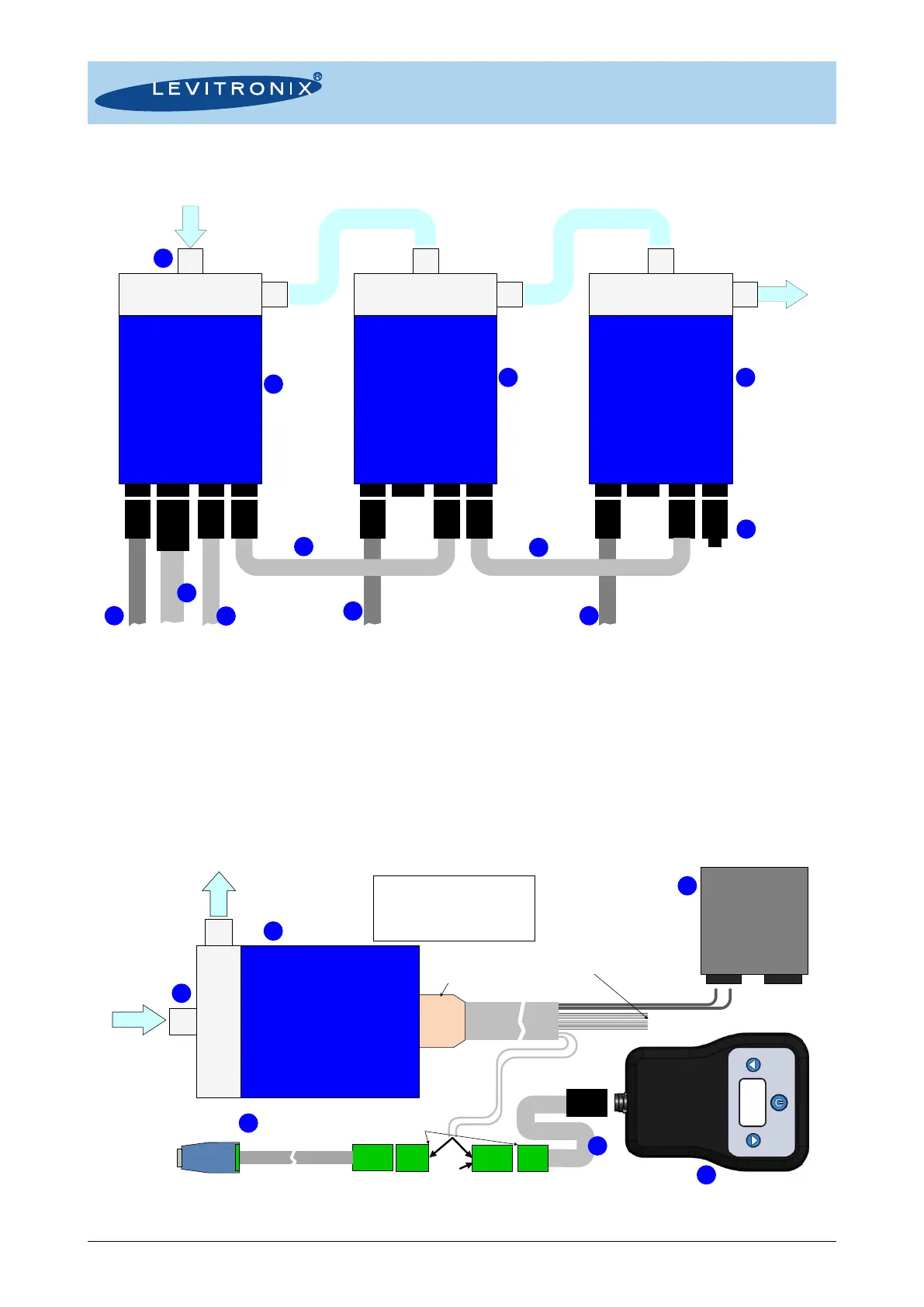

Figure 6: Multi-pump array for serial pumping with EasyConnect models
(Special firmware for serial pumping as one unit available on request.)
2.2.3 System Configuration for OEM Models
When using the pump system in speed control mode, the speed can precisely be set via an analog input.
Various digital inputs and outputs allow controlling and monitoring of the system. A RS485 enables
communication with a PC with the Levitronix
®
Service Software. Hence parameterization, firmware updates
and failure analysis are possible. The RS485 can also be used as a fieldbus to implement more intelligent
concepts of pump control.
Figure 7: System configuration of OEM model for speed control
Integrated Pump Driver
OEM Model
Pump Head
Outlet
Inlet
PLC Interface:
- Analog and Digital IO s
- Remote Control with Speed Signal
- Flowcontrol with external Sensor
- Pressure Control with ext. Sensor
AC/DC
Power
Supply
(DIN-Rail)
AC InputDC Output
PC Connection:
- System configuration
- Firmware update
- Monitoring
Open
Wires
Screw type connector for
open-wires connection
included in converter cable
package.
Integrated
Driver Cable
Cable Bushing
DC Supply
24 V
USB to RS485
Converter Cable
User Panel
24VDC
Fieldbus
RS485
