Levitronix BPS-i30 - Maximum Static Pressure for Pump Heads; Basic Dimensions of Main Components

User Manual for BPS-i30
www.levitronix.com
PL-4042-00, Rev05, DCO# 21-057
11
2.5 Maximum Static Pressure for Pump Heads

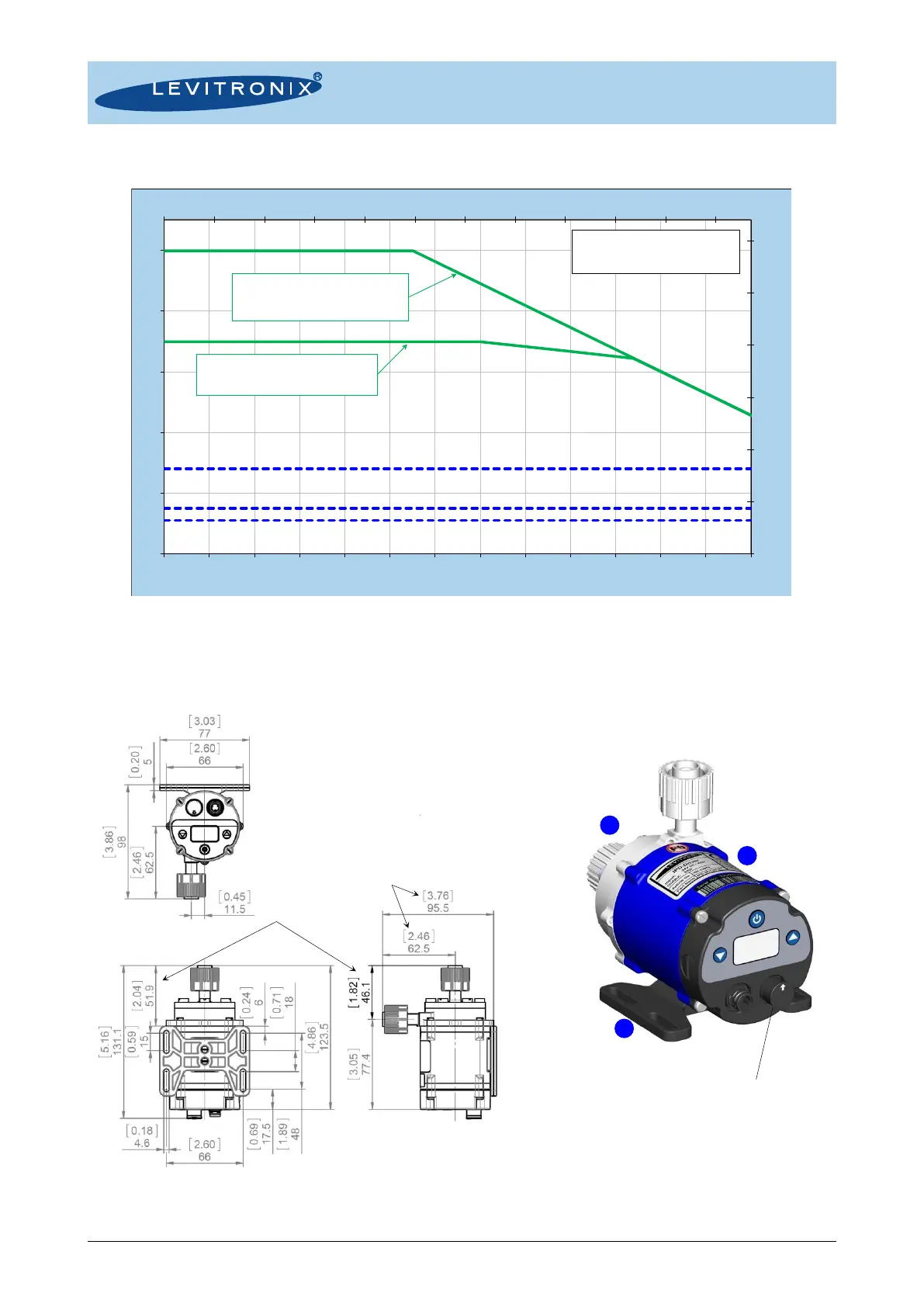

Figure 12: Specification for maximum static pressure of pump heads LPP-30.1/3/6
2.6 Basic Dimensions of Main Components
Figure 13: Basic dimensions of “Stand-Alone” model
(Non-tolerated dimensions are for reference only.)
0
25
50
75
100
125
150
77 87 97 107 117 127 137 147 157 167 177 187
0
2
4
6
8
10
25 30 35 40 45 50 55 60 65 70 75 80 85 90
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Ambient Temp = 25 °C
Note: Pressure limit only valid for
pump head mounted on motor.
Max. Operational Pressure for LPP-30.1
Max. Operational Pressure for LPP-30.3
Max. Operational Pressure for LPP-30.6
Max. Static Pressure for LPP-30.1/3:
Based on max. static pressure testing
according to EN12162 with safety factor
and dynamic pressure testing.
Max. Static Pressure for LPP-30.6:
Based on testing with LPP-30.1 and fitting
specifications (Pillar 1/2").
2e
1
Pump Head
LPP-30.x
Driver IPD-30.5
(Epoxy Coating)
Protective Cover for PLC
Connector
(Included in driver package).
Mounting Base Plate MBP-i30
(Included in driver package).
4
Pump Head Inlet and Outlet Fitting:
LPP-30.1/3: Pillar Super 3/8“ FM
LPP-30.6: Pillar Super 1/2” FM
+12 mm for
LPP-30.6
+10.5 mm for
LPP-30.6
