Levitronix BPS-i30 User Manual

User Manual for BPS-i30
www.levitronix.com
PL-4042-00, Rev05, DCO# 21-057
12

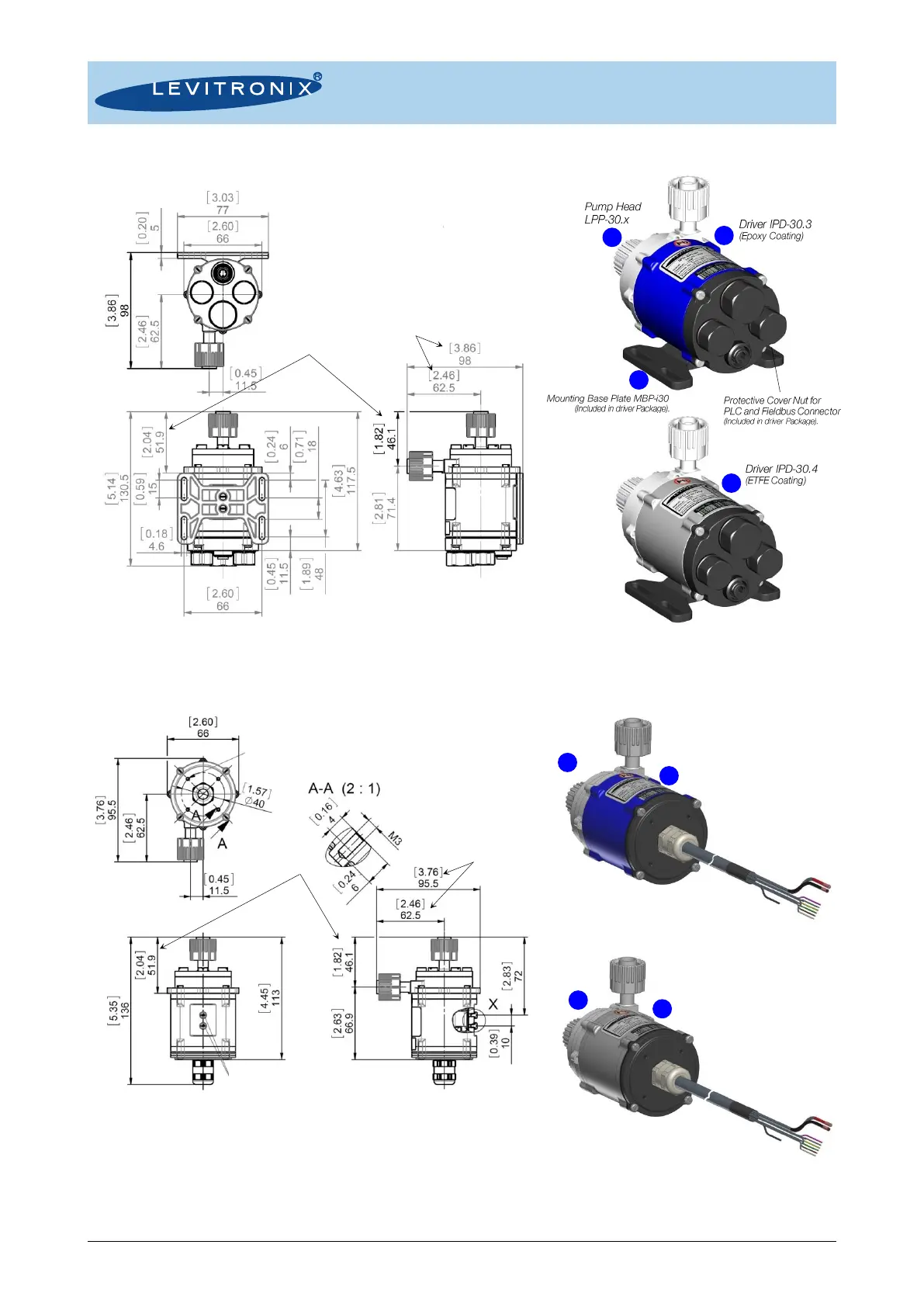

Figure 14: Basic dimensions and description of standard “EasyConnect” models
(Non-tolerated dimensions are for reference only.)
Figure 15: Basic dimensions and description of standard “OEM” models
Note 1: Non-tolerated dimensions are for reference only.
Pump Head
LPP-30.x
Pump Head Inlet and Outlet Fitting:
Pillar Super 3/8“ FM
2a
1
2b
4
2a
2b
1
1
Driver IPD-30.1
(Epoxy Coating)
Driver IPD-30.2
(ETFE Coating)
Driver Cable
(FEP with Open Wires)
Driver Cable
(PVC with Open Wires)
Multi-purpose screw
holesM3 x 4 mm
Multi-purpose screw holes
(M3 x 4 mm screws with
FKM O-ring for protection)
Pump Head Inlet and Outlet Fitting:
LPP-30.1/3: Pillar Super 3/8“ FM
LPP-30.6: Pillar Super 1/2” FM
+12 mm for
LPP-30.6
Pump Head Inlet and Outlet Fitting:
LPP-30.1/3: Pillar Super 3/8“ FM
LPP-30.6: Pillar Super 1/2” FM
+10.5 mm for
LPP-30.6
+12 mm for
LPP-30.6
+10.5 mm for
LPP-30.6
