PL-4042-00, Rev05, DCO# 21-057
13

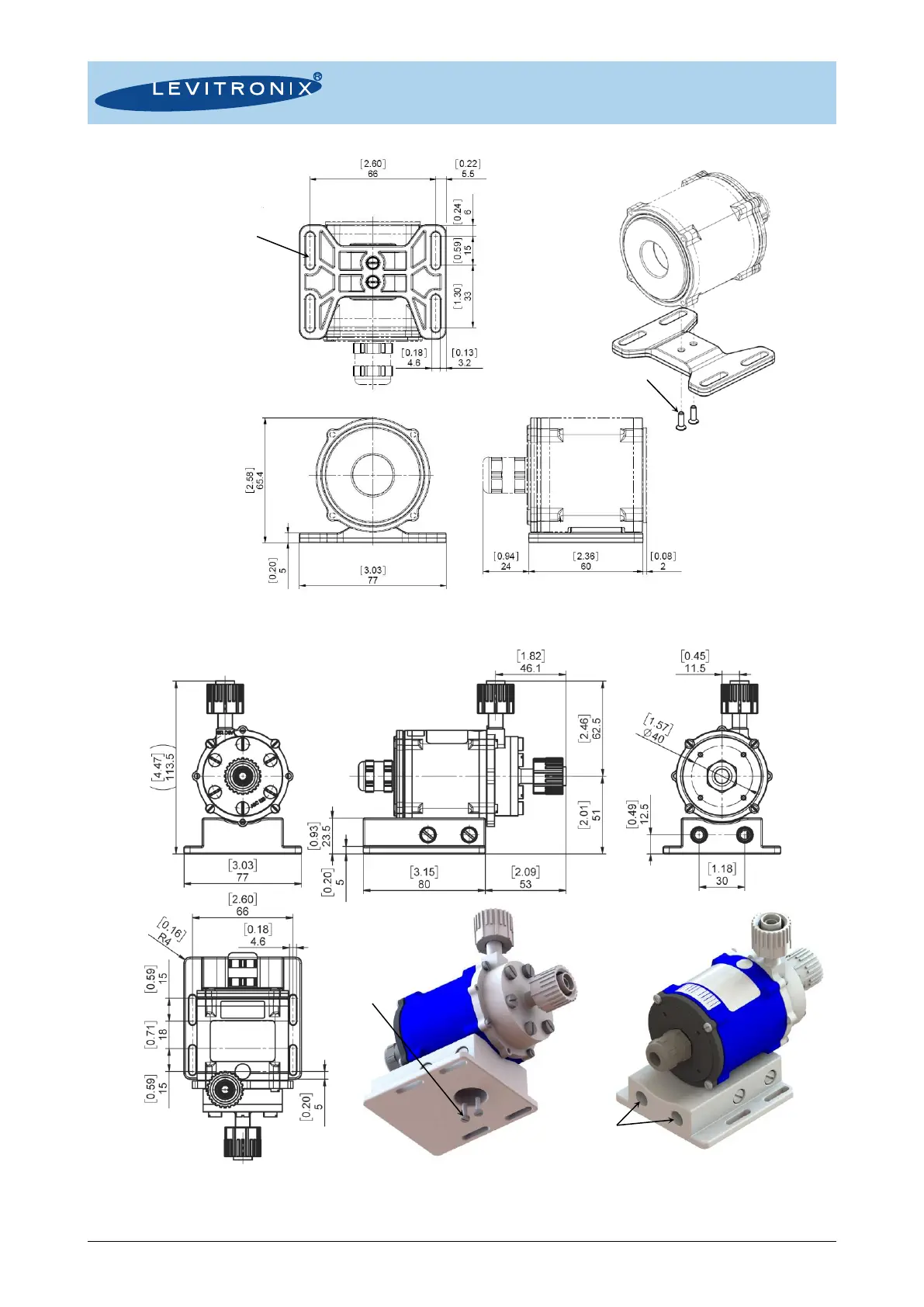

Figure 16: Basic dimensions (in [mm] and [inch]) of mounting base plate MBP-i30.1
(Context with driver IPD-30.x. Non-tolerated dimensions are for reference only.)
Figure 17: Basic dimensions (in [mm] and [inch]) of water cooling module WCM-i30.2
Note 1: Dimensions are in context with driver IPD-30.1 and pump head LPP-30.1.
Note 2: Non-tolerated dimensions are for reference only. Note 3: For other configurations refer to according drawings.
Slot for Driver Mounting
with M4 screws
Driver IPD-30.x
Mounting Base Plate
MBP-i30.1
Material: PP+GF30
Countersunk Head Screws
M3 x 10mm, FEP coated
NPT 1/8” x 6.7 mm
In-/outlet for water
cooling fittings.
Mounting Screws:
2x M3x10mm
Inox A4 PTFE coated
Torque: 50 cNm
Note: remove 2 motor
screws before mounting
WCM-30.2.
