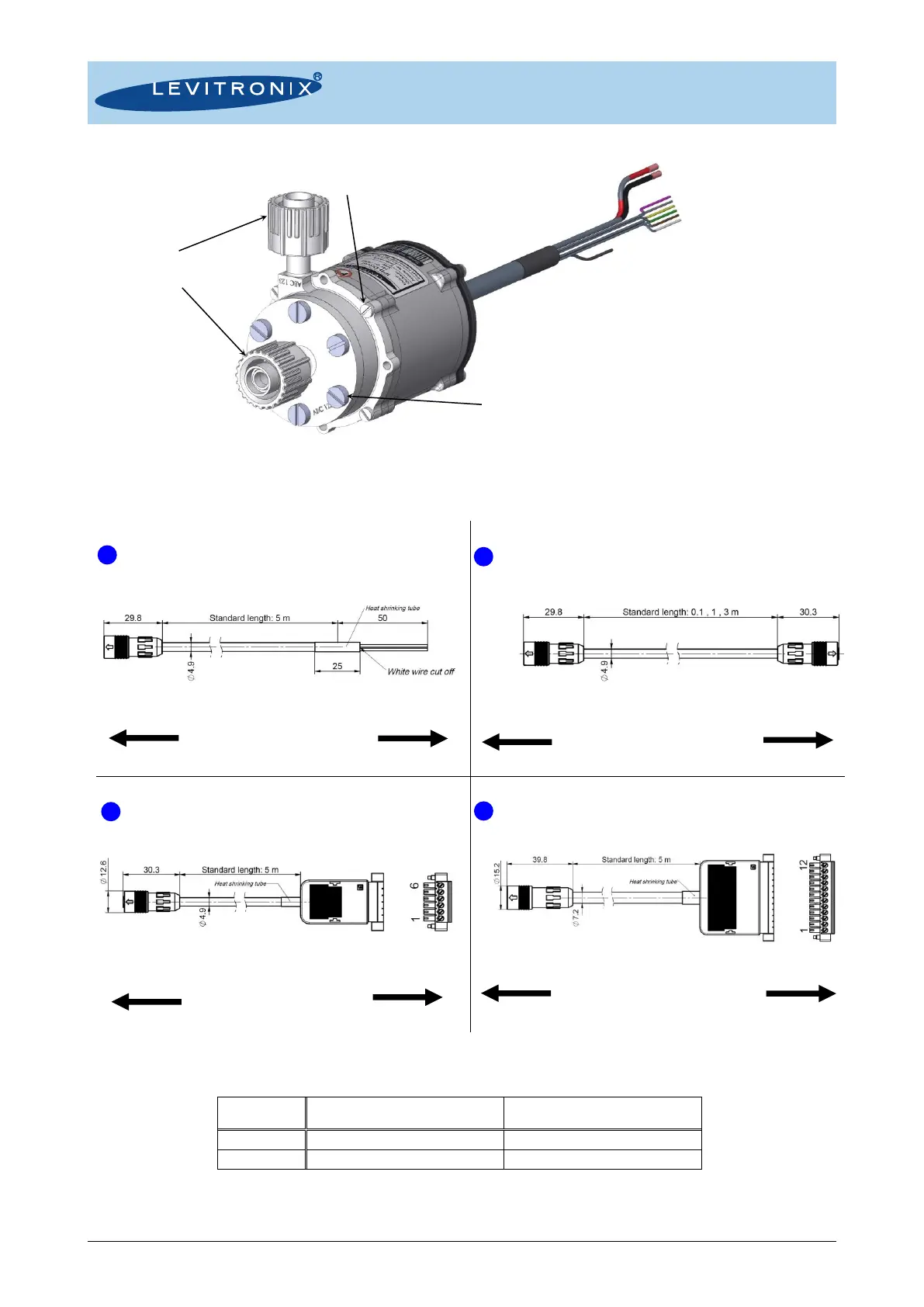

Figure 18: Basic mechanical specifications of pump head LPP-30.1
(For other configurations refer to the relevant specification drawing)
IPS Cable Power ICP-1.1 (for EasyConnect and Stand-Alone drivers)
IPS Cable Signal ICS-1.1 (for EasyConnect drivers)
IPS Cable Signal ICS-1.2 (for EasyConnect and Stand-Alone drivers)
IPS Cable Signal ICS-2.1 (for EasyConnect drivers)
Figure 19: Basic dimensions and specifications of standard cables
(Non-tolerated dimensions are for reference only.)
Cable
Jacket
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
7x cable OD
15 x cable OD
PVC
7x cable OD
15 x cable OD
Table 5: Specifications for min. bending radius of cables
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!
6pcs M5x14 Screws (SS PTFE coated, torque spec. 35 Ncm)
(For pump head mounting)
4pcs M3x10 Screws (SS PTFE coated, torque spec: 15 Ncm)
(For pump head motor mounting. Motor has 8
mounting holes and therefore can be rotated by 45 degree)
to AC/DC Supply
to driver DC supply
7
to driver fieldbus IN
8a
to driver fieldbus OUT
8b
to external interface
EasyConnect driver: to fieldbus
Stand-Alone driver: to PLC
Screw type wire
connector
9
to external PLC
to driver PLC
Screw type wire
connector
Wire size: 0.5 mm
2
Wire size: 0.08 mm
2
Wire size: 0.08 mm
2
Wire size: 0.14 mm
2
Pump Head Inlet and Outlet Fitting:
Pillar Super 3/8“ FM (ID = 6.4 mm)
