Levitronix BPS-i30 User Manual

User Manual for BPS-i30
www.levitronix.com
PL-4042-00, Rev05, DCO# 21-057
18

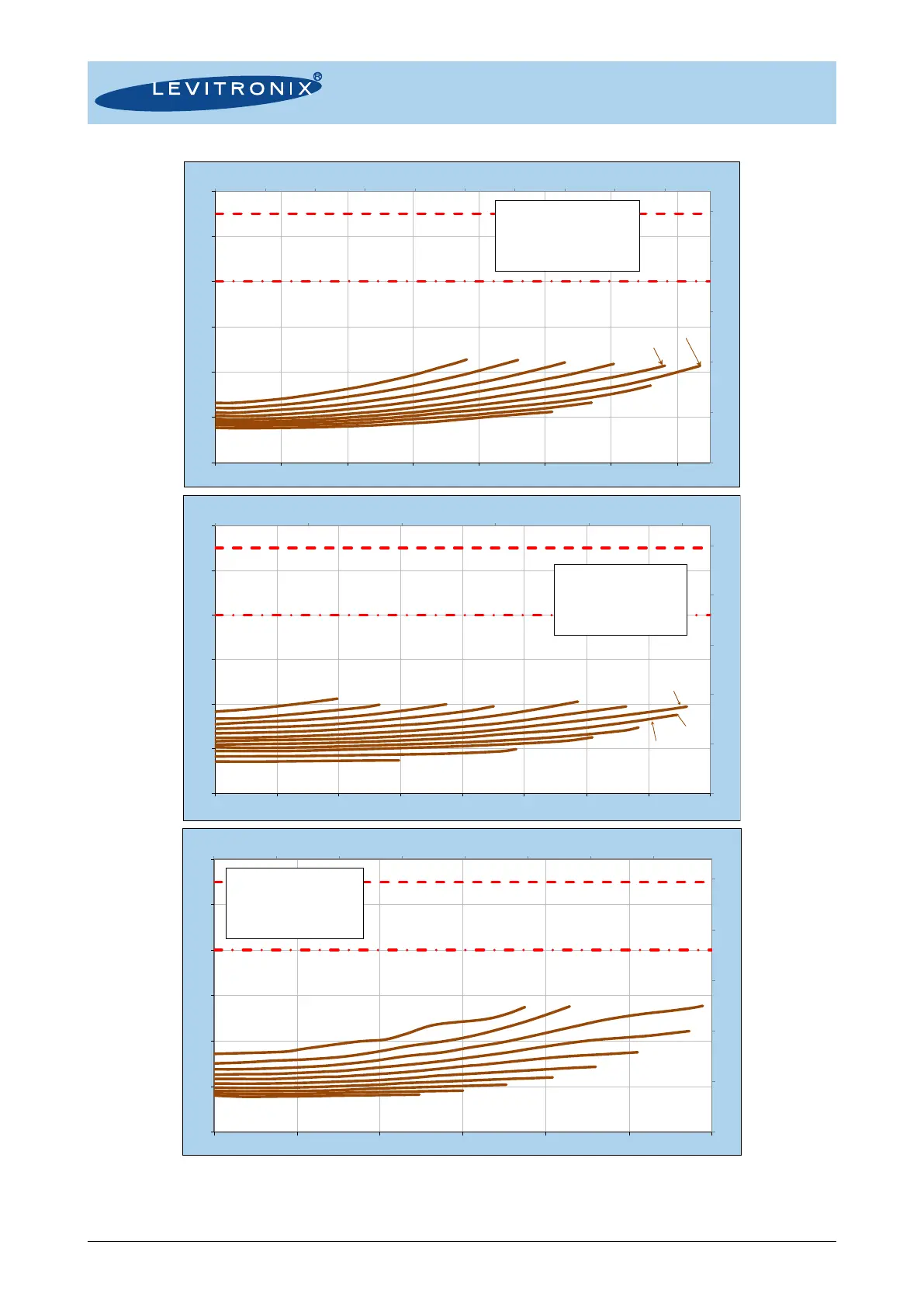

Figure 22: Temperature curves for the IPD-30.x driver @ 25°C liquid temperature
Note 1: Typical temperatures inside the driver for pumping with LPP-30.x pump heads and IPD-30 driver.
77
97
117
137
157
177
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
25
35
45
55
65
75
85
0 1 2 3 4 5 6 7
[°F]
[gallons / min]
[°C]
[liters / min]
Ambient Temp = 25°C
Liquid Temp. = 25°C
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Temp. Time Constant = ~40 min
Pump Head: LPP-30.1
Recommended Operational Thermal Limit
Absolute Thermal Limit
15000 rpm
14000 rpm
13000 rpm
12000 rpm
11000 rpm
7000 rpm
8000 rpm
8000 rpm
10000 rpm
77
97
117
137
157
177
0.0 0.2 0.4 0.6 0.8 1.0
25
35
45
55
65
75
85
0 0.5 1 1.5 2 2.5 3 3.5 4
[°F]
[gallons / min]
[°C]
[liters / min]
Ambient Temp = 25°C
Liquid Temp. = 25°C
Specific gravity = 1g/cm
3
Viscosity = 0.7cP
Temp. Time Constant = ~40min
Pump Head: LPP-30.3
Recommended Operational Limit
19000 rpm
Absolute Thermal Limit
18000 rpm
17000 rpm
16000 rpm
15000 rpm
14000 rpm
5000 rpm
8000 rpm
10000 rpm
11000 rpm
13000 rpm
12000 rpm
77
97
117
137
157
177
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5
25
35
45
55
65
75
85
0 2.5 5 7.5 10 12.5 15
[°F]
[gallons/min]
[°C]
[liters/min]
Ambient Temp = 25°C
Liquid Temp. = 25°C
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Temp. Time Constant = ~40 min
Pump Head: LPP-30.6
Recommended Operational Limit
Absolute Thermal Limit
14000 rpm
13000 rpm
12000 rpm
11000 rpm
10000 rpm
9000 rpm
8000 rpm
7000 rpm
6000 rpm
5000 rpm
«Standard»
«High Pressure»
«High Flow»
