1-5
The Mainframe960L
Standby Switch and Indicator
This switches the 960L between on and standby; the indi-
cator LED lights when the unit is on.
When your 960L is in standby, the power to most circuitry is
removed. To completely disconnect power from the 960L,
either turn off the power by using the switch located on
the rear panel of the 960L or unplug the power cable from
the wall outlets.

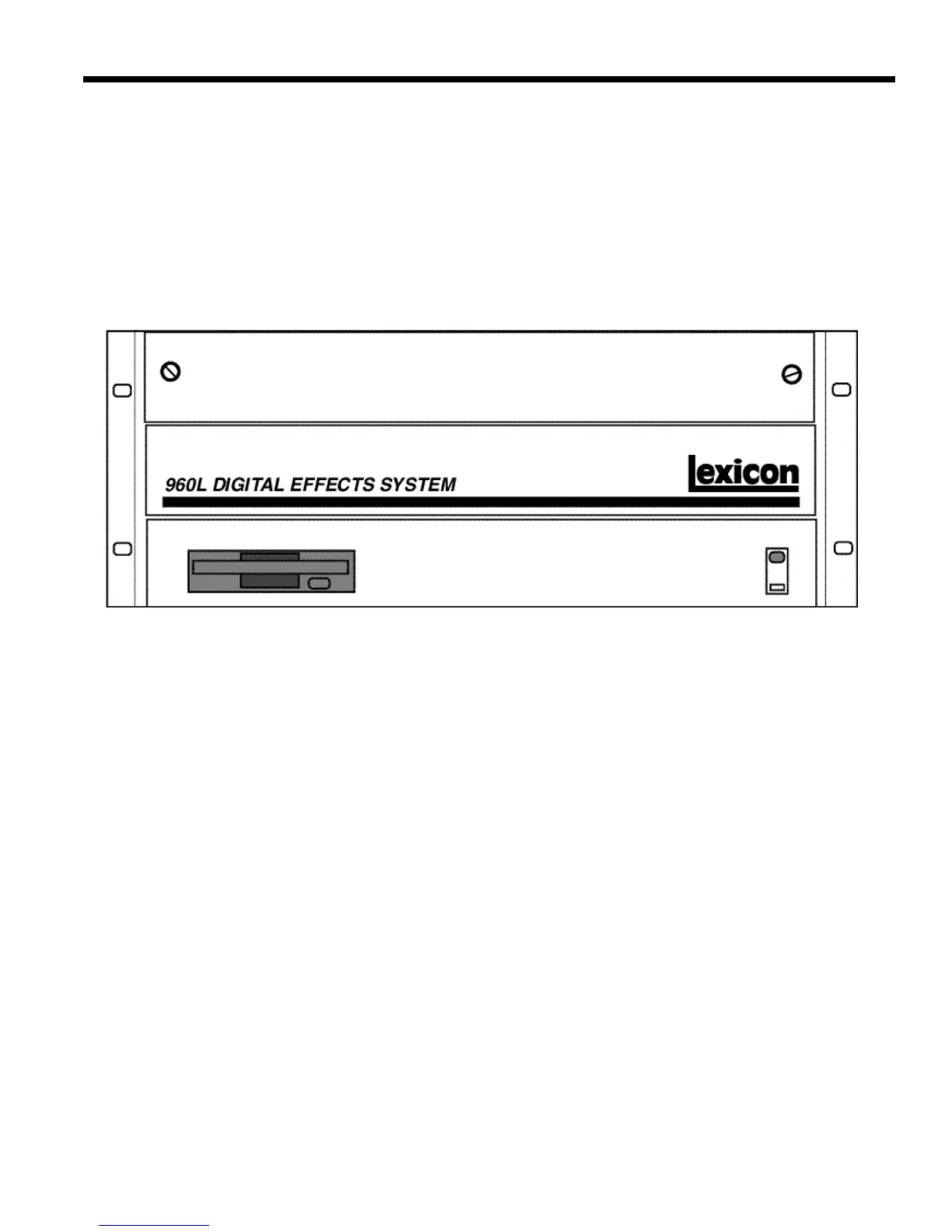

Figure 1-2 — Front panel, closed
Floppy Drive
This is a 3.5", High Density, IBM Format compatible, floppy
drive. This is primarily used for saving user Registers.
Thumbscrews
To gain access into the front section of the chassis,
unscrew both thumbscrews and lower the hinged panel.
THE FRONT PANEL
