DSP Card Slots
The 960L comes standard with one Digital Signal Processor
(DSP) card and support for an optional second DSP card.
IMPORTANT:
Do not plug any cards into these slots except
those made by Lexicon for the 960L.
CPU Card
NLX-type montherboard.
CAUTION:
The motherboard has a lithium battery. Lithium is a
hazardous substance. The battery should be
replaced only by qualified service personnel, and
disposed of properly.
BEHIND THE FRONT PANEL

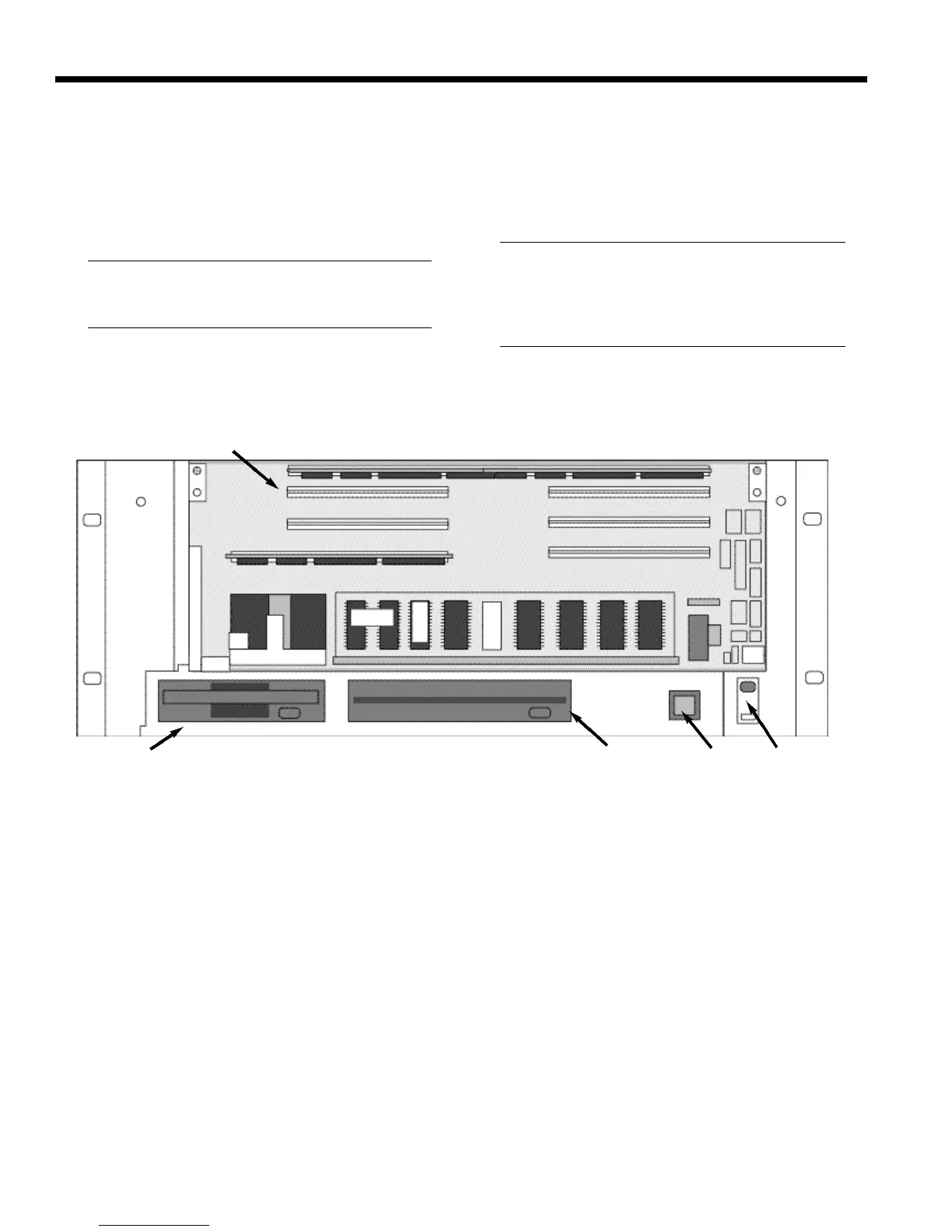

Figure 1-3 — Front Panel, Open
Card slots for DSP cards. The cards can be removed for
service, when instructed by Lexicon Customer Service.
Floppy drive for
saving registers
Standby
switch
CD-ROM drive for
software upgrades
Reset
Switch
