Controller quirks
Some synthesizers and controllers cannot send the full range of MIDI program
change messages (1-128). With them, you can't access all the registers in the
LXP-15. Others may appear to be able to send only 32, but actually have a bank
mode that does let you send all 128 program change messages. Also, be aware
that some MIDI devices use a program numbering system that uses 0-127
instead of 1-128. If in doubt, see the manual for your controller.
When using Tempo as a control Source (see
Patching ), you must send MIDI
Clock messages from the MIDI controller to the LXP-15 as shown below.
MIDI Tempo control
INPUT OUTPUT
POWER
LXP-15
exicon
HEADROOM
OVL
12
18
24
VIEW
ADJUST PAGE
Reverb
Pitch/EQ
Dly
Setup
Store
Name
Global
MIDI
Level
Mod
Al
g
Patch 1
Patch 2
Patch
3
Patch
4
Sys
MIDI Out
(MIDI clock)
MIDI In
LXP-15
Sequencer, Drum machine
or computer

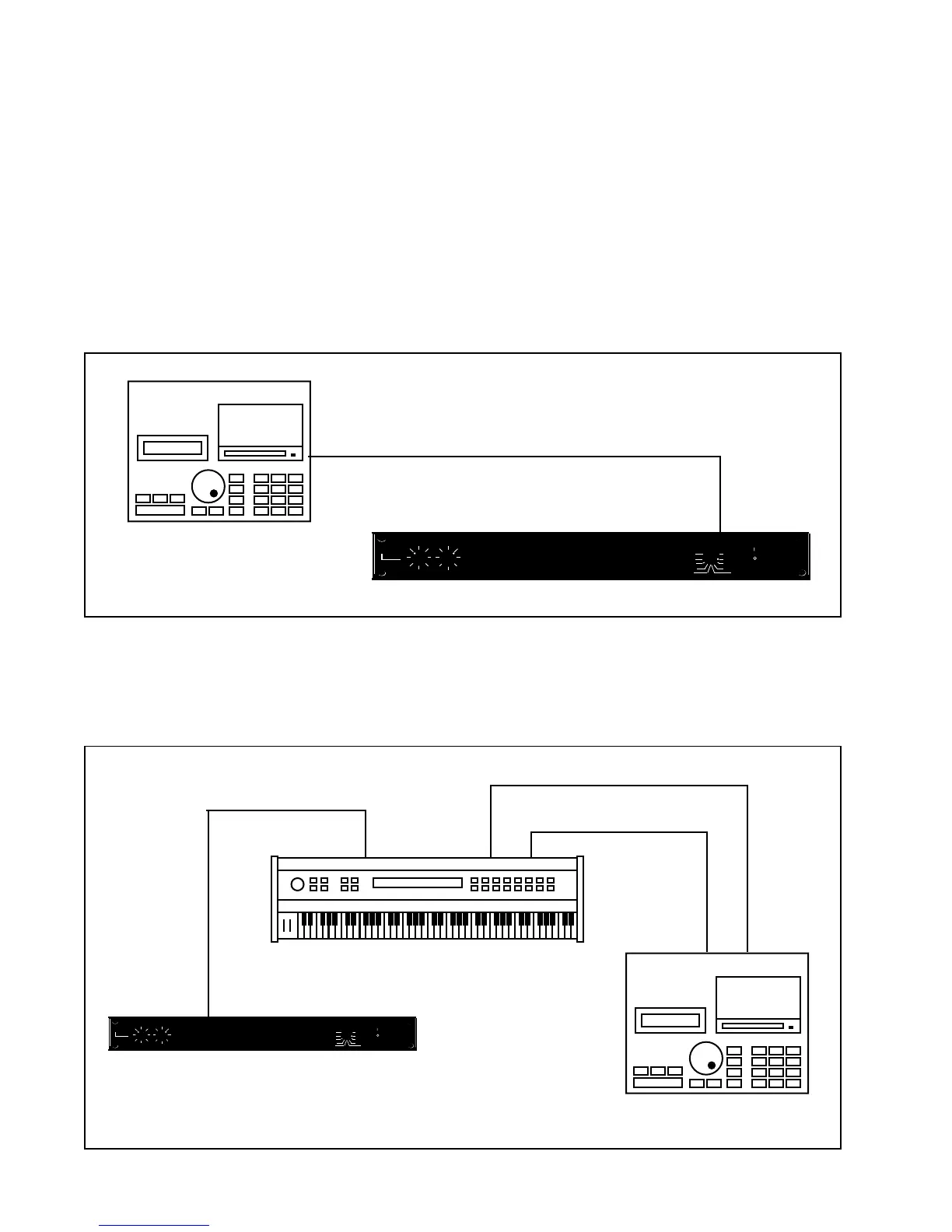

The figure below shows the MIDI connections for controlling the LXP-15
simultaneously with MIDI Clocks from a sequencer, and messages from another
MIDI controller. Note that the controller is set to “local control off” and the
sequencer is set to “echo input.”
INPUT OUTPUT
POWER
LXP-15
exicon
HEADROOM
OVL
12
18
24
VIEW
ADJUST PAGE
Reverb
Pitch/EQ
Dly
Setup
Store
Name
Global
MIDI
Level
Mod
Al
g
Patch 1
Patch 2
Patch
3
Patch
4
Sys
Sequencer or computer
"Echo Input"
LXP-15
MIDI Instrument
"Local Off"
MIDI In
MIDI Out
MIDI In
MIDI Out
(MIDI clock)
MIDI In
MIDI Thru
