Lexmark 7016-670 - Toner Cartridge Smart Chip Contact Removal

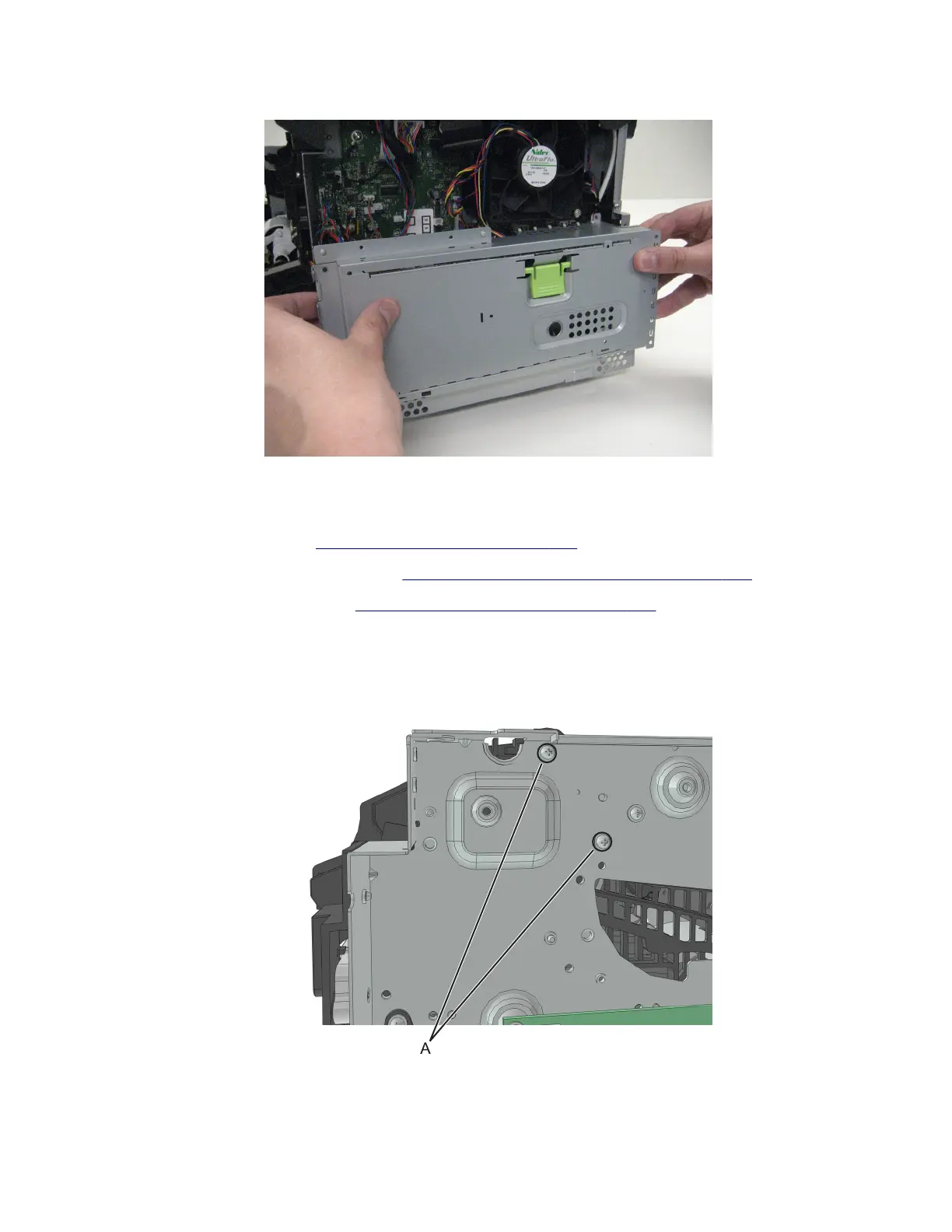

6 Carefully remove the controller board shield from the printer.
Toner cartridge smart chip contact removal
1 Remove the right cover. See “Right cover removal” on page 277.
2 Remove the controller board shield. See “Controller board shield removal” on page 284.
3 Remove the controller board. See “Controller board removal” on page 282.
4 Remove the two screws (A).
7016
Repair information
286
