Stapler rear door removal

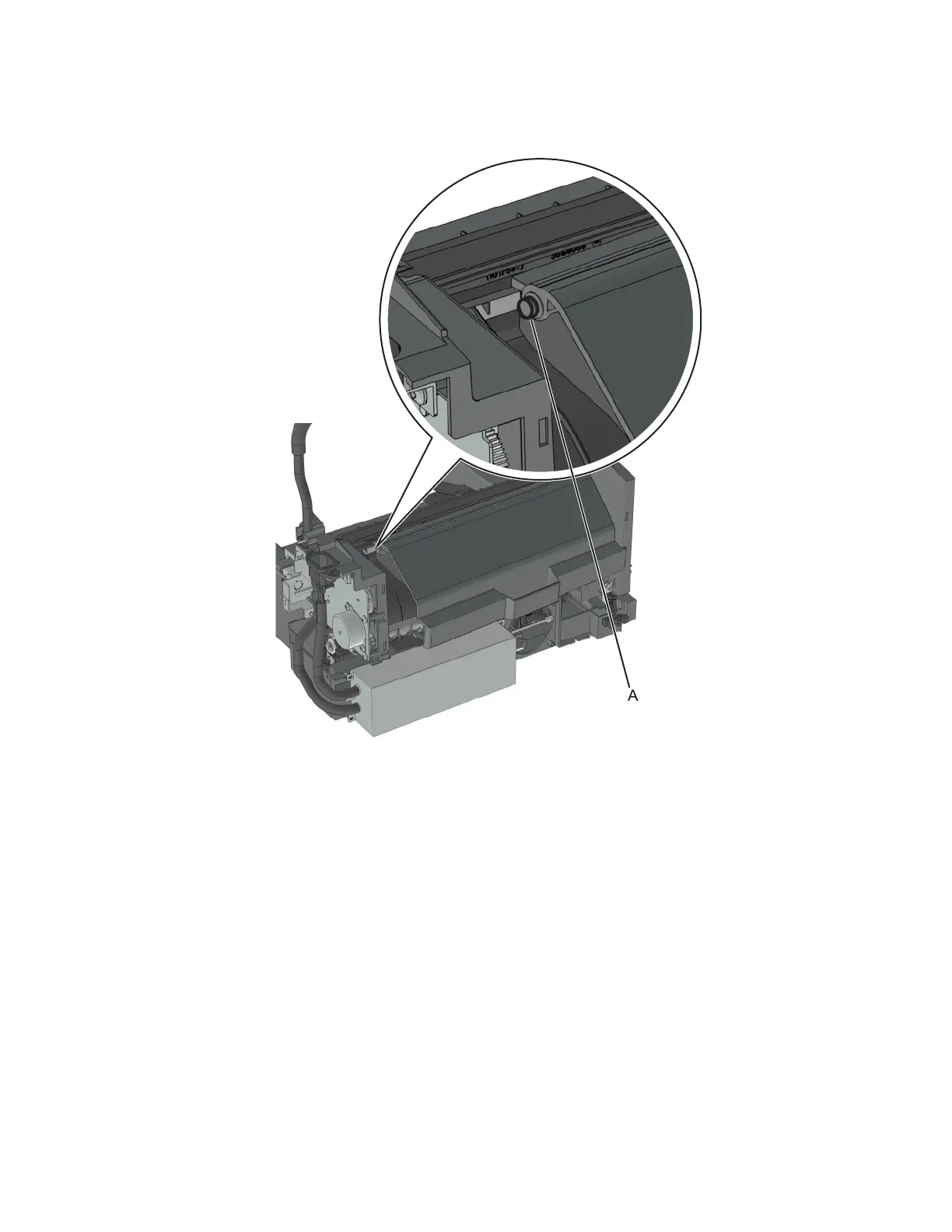

1 On the bottom of the staple
finisher,
flex
the stapler rear door to release the pin (A).
2 Remove the stapler rear door.
7016
Repair information
386
