Lexmark 7016-670 - Front Side Removals; Left Front Mount Removal

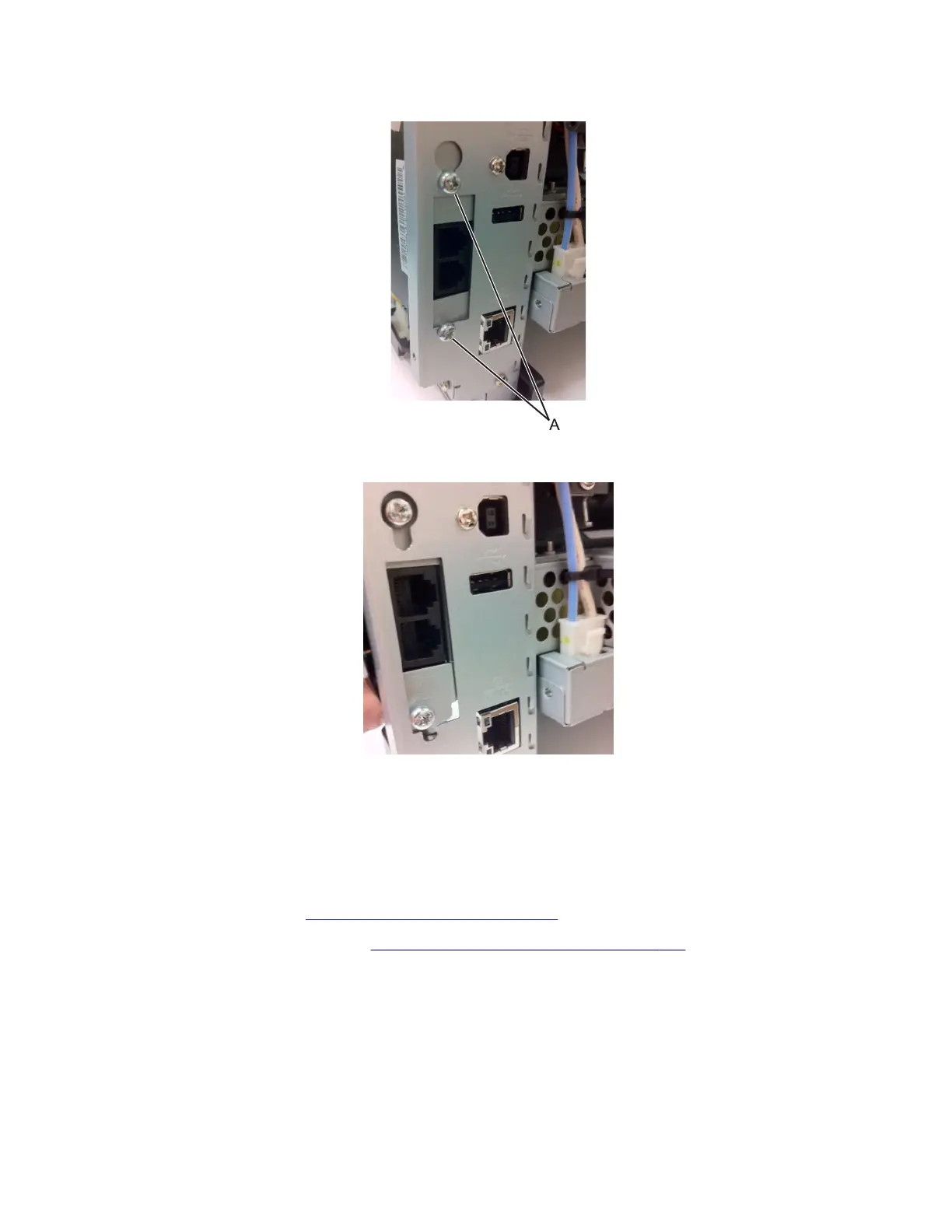

4 Loosen the two screws (A) securing the modem to the controller board shield.
5 Lift the modem to release, and then remove.
Front side removals
Left front mount removal
1 Remove the left cover. See “Left cover removal” on page 264.
2 Remove the front access cover. See “Front access cover removal” on page 316.
7016
Repair information
289
