Separator roll assembly removal

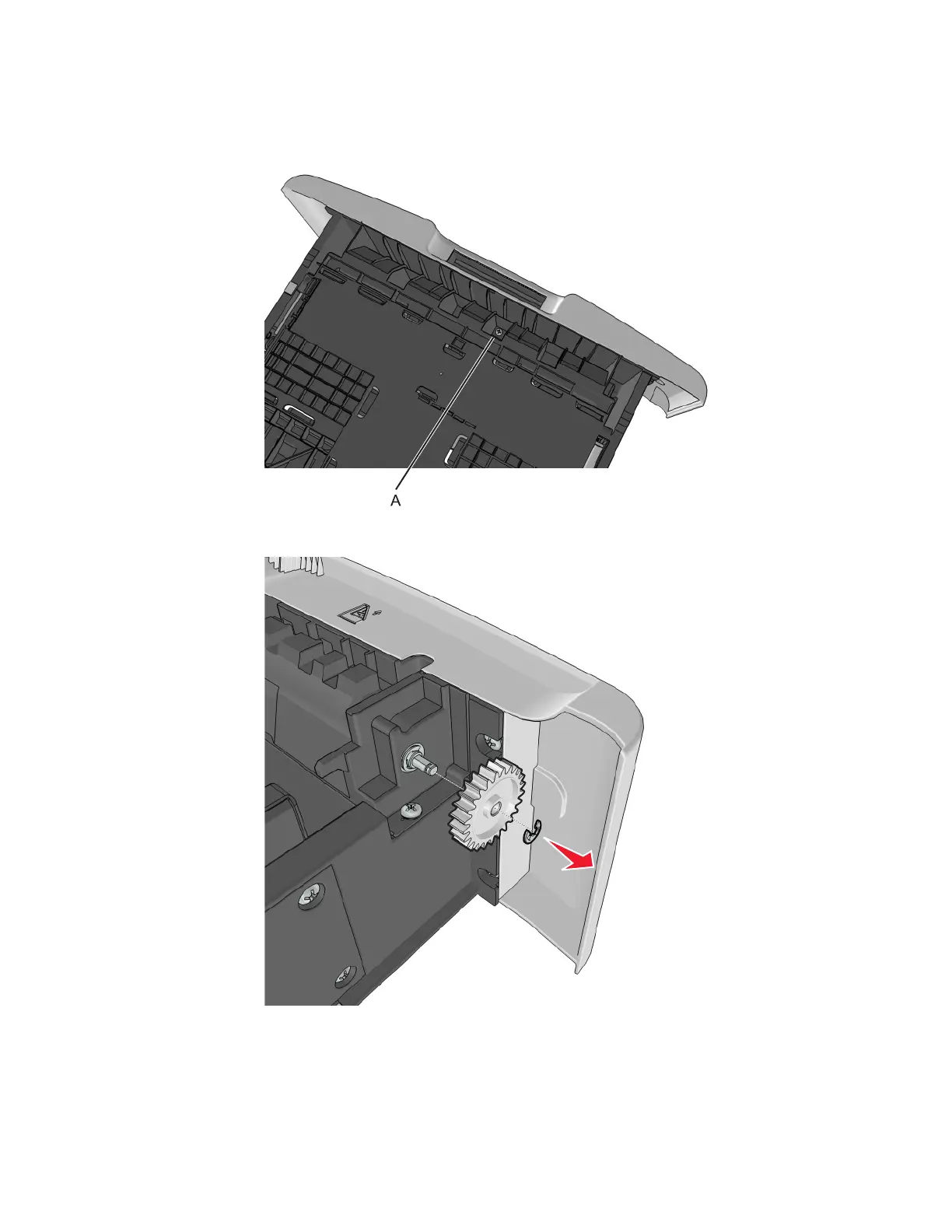

1 Remove the screw (A) from under the tray insert.
2 Remove the E-clip, and then remove the gear.
7016
Repair information
376
