Lexmark 7016-670 - Front Access Cover Removal

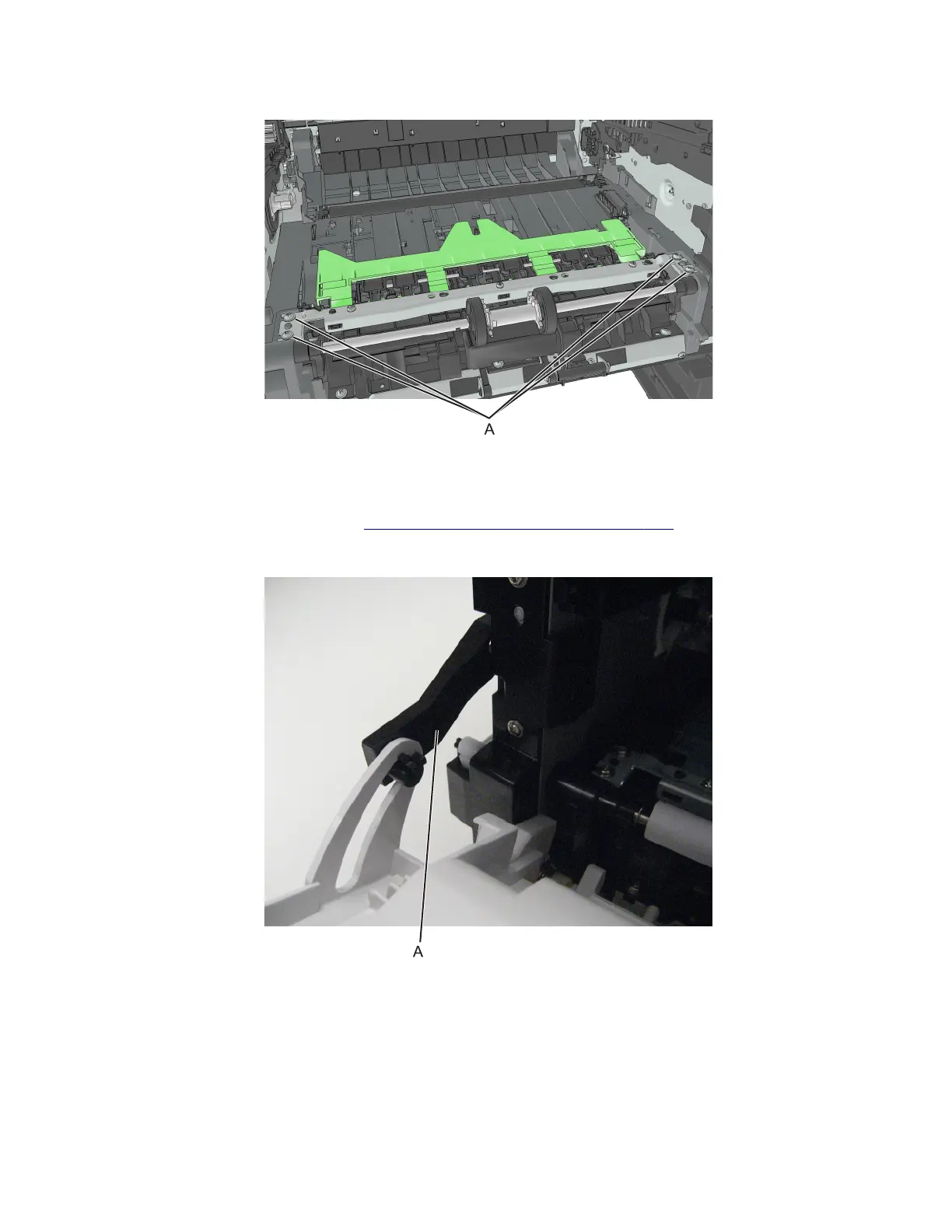

3 Remove the four screws (A), and then remove the jam access cover.
Front access cover removal
1 Remove the name plate cover. See “Name plate cover removal” on page 295.
2 Disconnect the cartridge gear linkage (A) from the front access cover.
7016
Repair information
316
