Lexmark 7016-670 - Right Front Mount Removal

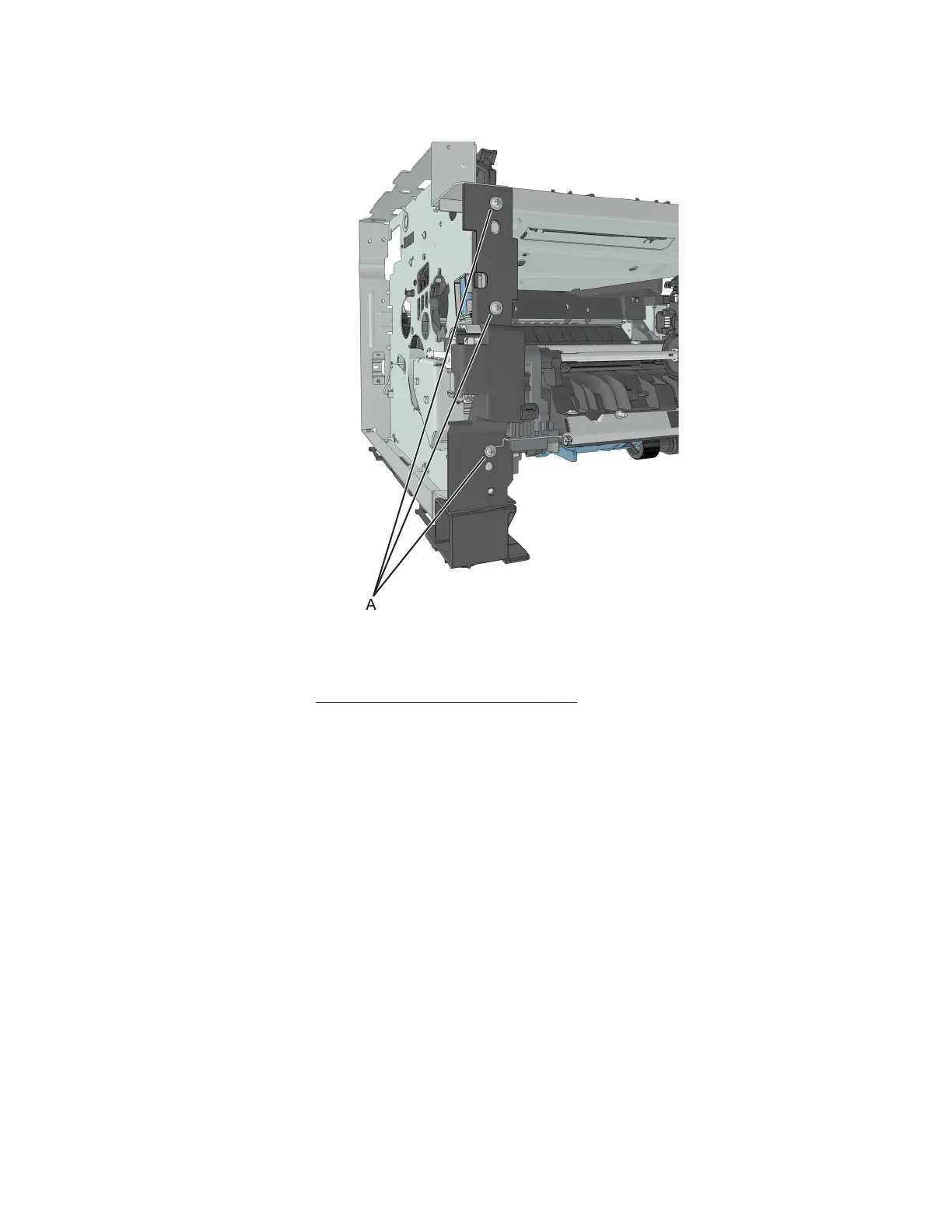

3 Remove the three screws (A), and then remove the left front mount.
Right front mount removal
1 Remove the right cover. See “Right cover removal” on page 277.
2 Disconnect all control panel cables from the controller board.
3 Disconnect the cable JCVR1 from the controller board.
7016
Repair information
290
