Lexmark 7016-670 - ADF Input Tray Removal; ADF Unit Removal

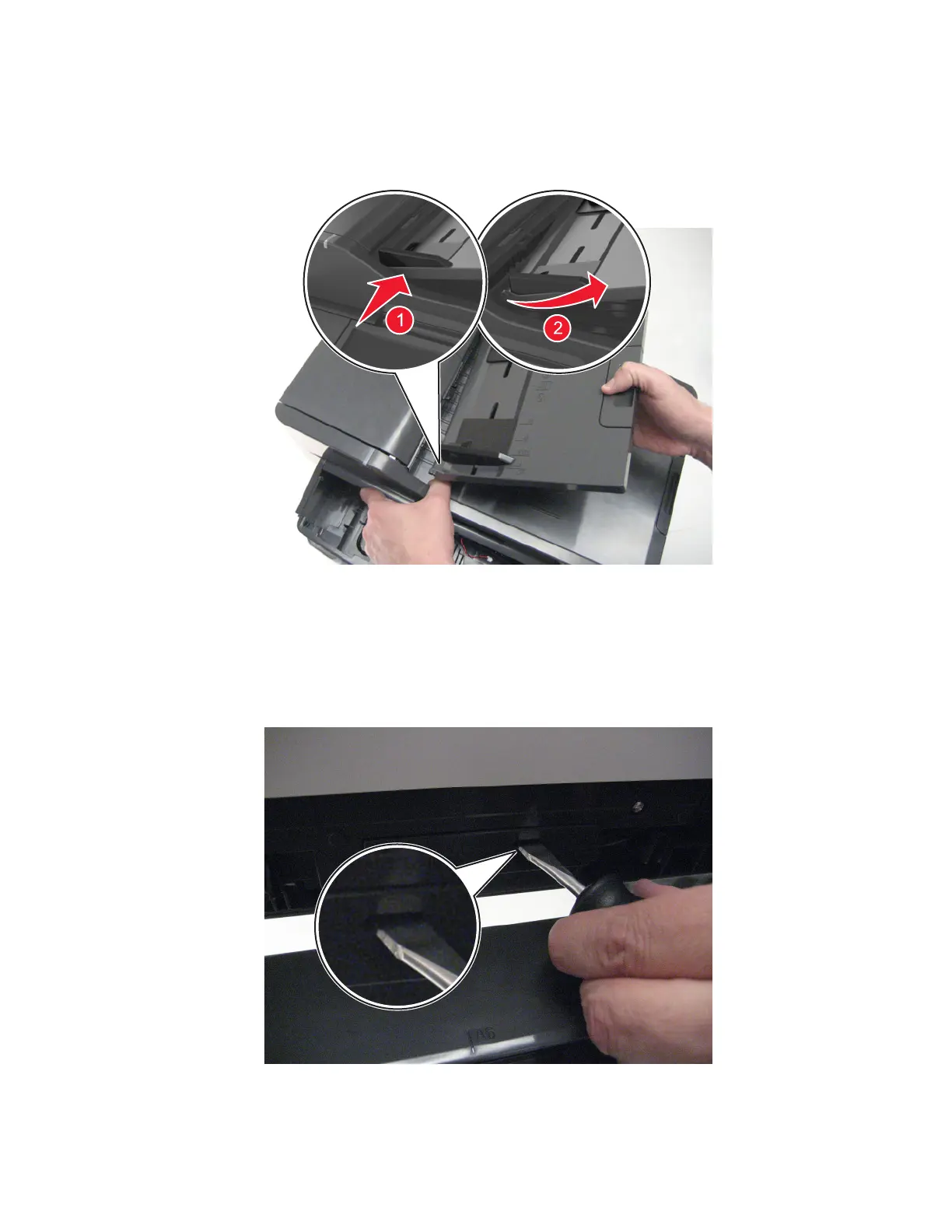

ADF input tray removal
1 Firmly grasp the tray with one hand.
2 Release the tray by pushing its front edge inwards, and then remove the tray.
ADF unit removal
1 Open the ADF unit with one hand.
2 Insert a flat-blade screwdriver into the slot, and release the tab fastening the ADF harness cover to the ADF
unit.
7016
Repair information
362
