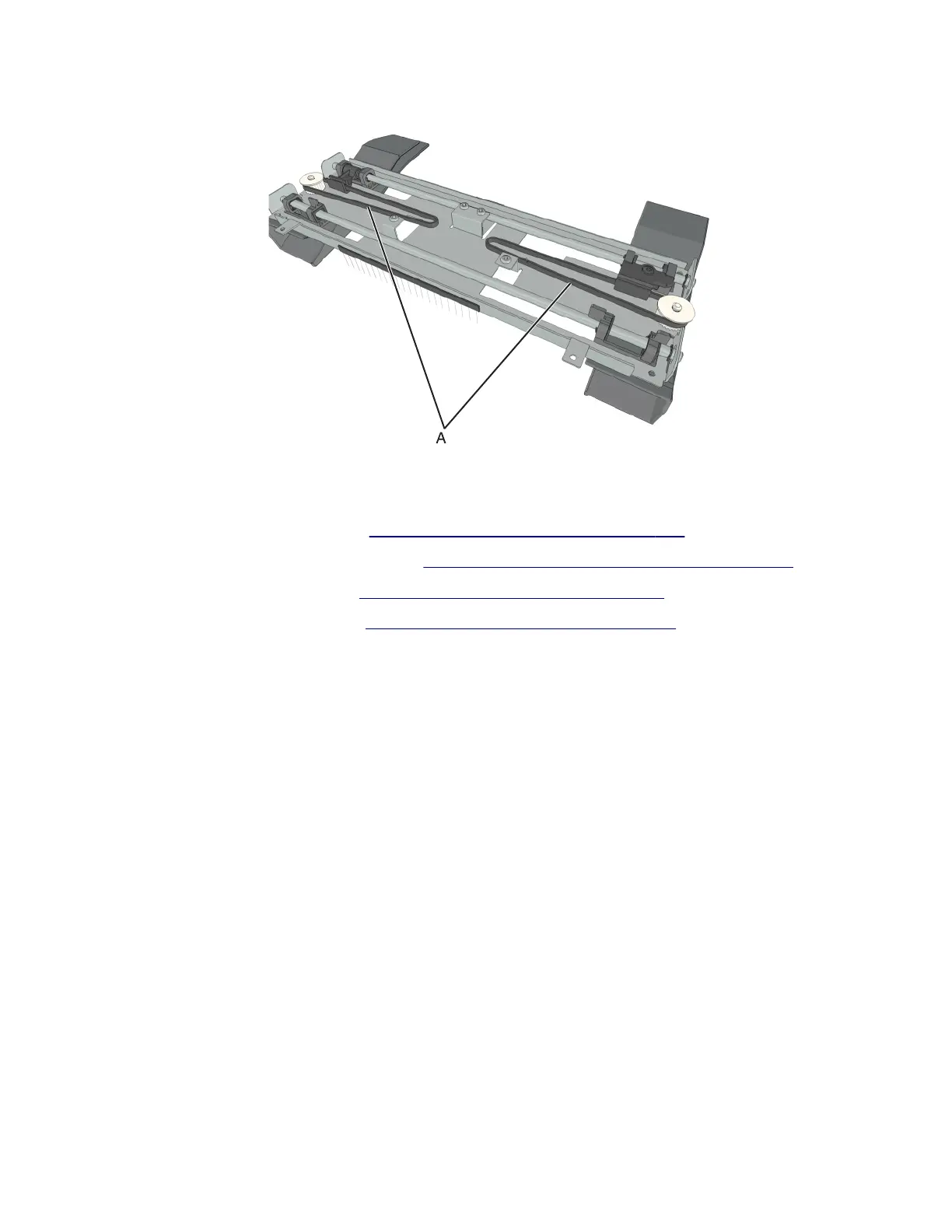

12 Remove the tamper drive belts (A).
Diverter gearbox removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 384.
2 Remove the stapler carriage assembly. See “Stapler carriage assembly removal” on page 387.
3 Remove the stapler left cover. See “Stapler left cover removal” on page 385.
4 Remove the stapler rear cover. See “Stapler rear cover removal” on page 393.
