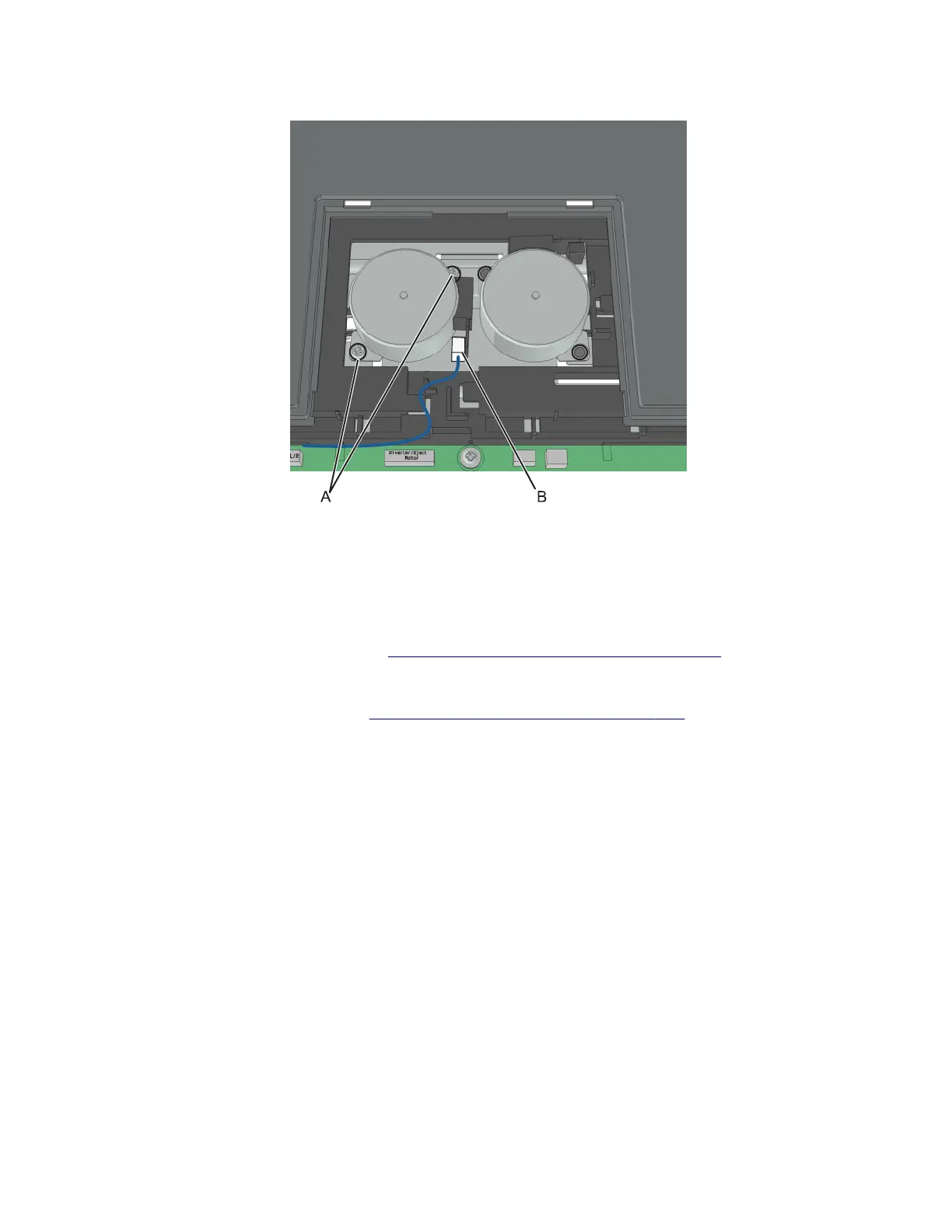

3 Disconnect the motor cable (B), and remove the tamper motor.
Warning—Potential Damage: Be careful not to lose the tamper belt when removing the tamper motor.
Installation note: Make sure to engage the motor gears with the tamper belt.
Stapler rear cover close limit switch removal
1 Remove the stapler service cover. See “Stapler service cover removal” on page 397.
2 Disconnect the limit switch cable from the controller card.
3 Remove the stapler right cover. See “Stapler right cover removal” on page 384.
