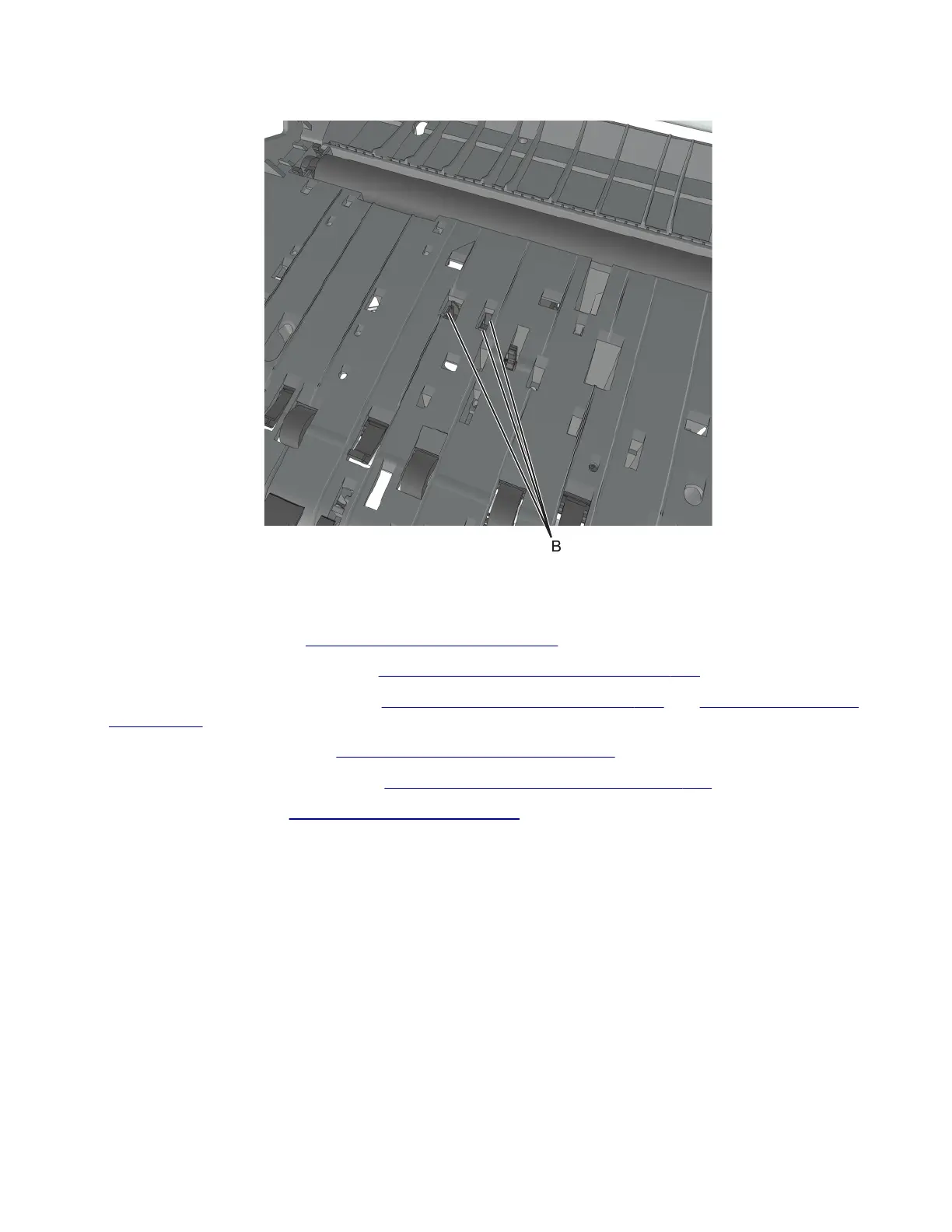

8 From inside the printer, release the three latches (B).
Toner density sensor removal
1 Remove the left cover. See “Left cover removal” on page 264.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 266.
3 Remove the rear door and cover. See “Rear exit door removal” on page 342 and “Rear cover removal”
on page 343.
4 Remove the power supply. See “Power supply removal” on page 323.
5 Remove the power supply shield. See “Power supply shield removal” on page 323.
6 Remove the duplex. See “Duplex removal” on page 324.
7 Disconnect the spring (A) from the printer.
