Lexmark 7016-670 - Top Side Removals; Top Cover Removal

Top side removals
Top cover removal
1 Remove the scanner assembly. See “Scanner assembly removal” on page 365.

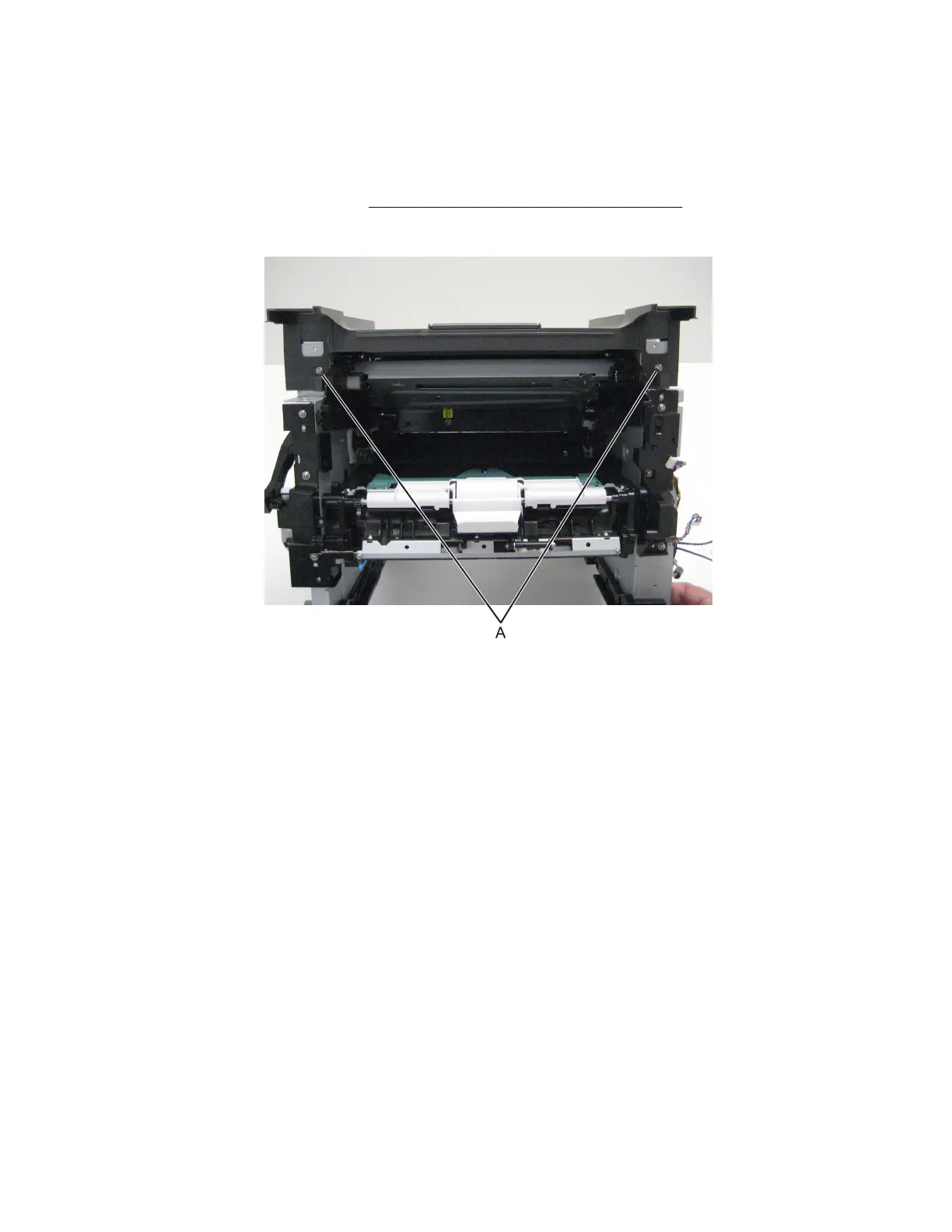

2 Remove the two screws from the top cover (A).
3 Remove the fan and fan duct.
4 Disconnect the bin full sensor cable (JBINS1) from the controller board.
