Lexmark 7016-670 - Bin Full Sensor;Lens Removal

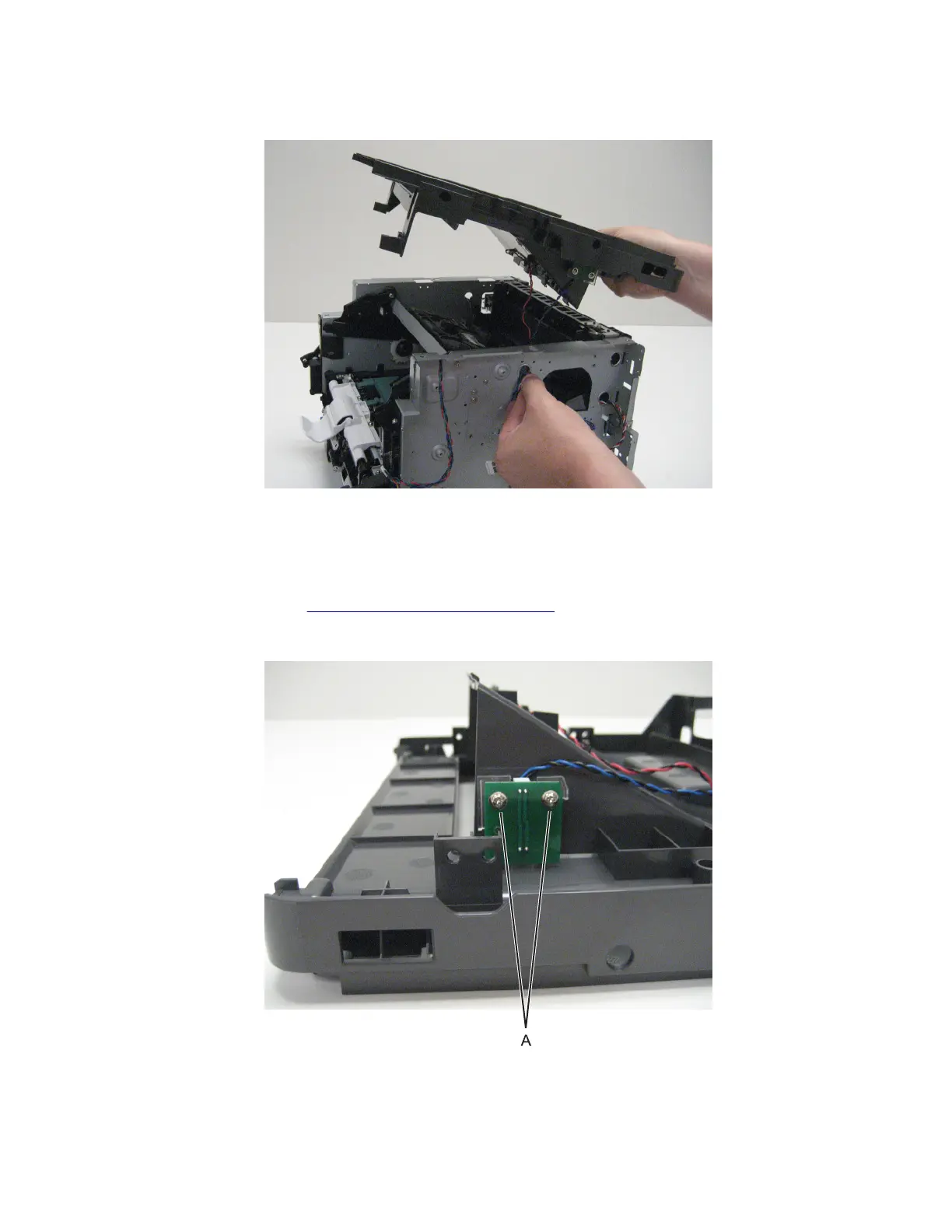

5 Remove the top cover from the printer frame while feeding the bin full sensor cables through the side of
the printer frame.
Bin full sensor/lens removal
Note: The lens is a separate FRU.
1 Remove the top cover. See “Top cover removal” on page 351.
2 Remove the two screws (A) securing the right sensor and right lens to the top cover.
7016
Repair information
352
