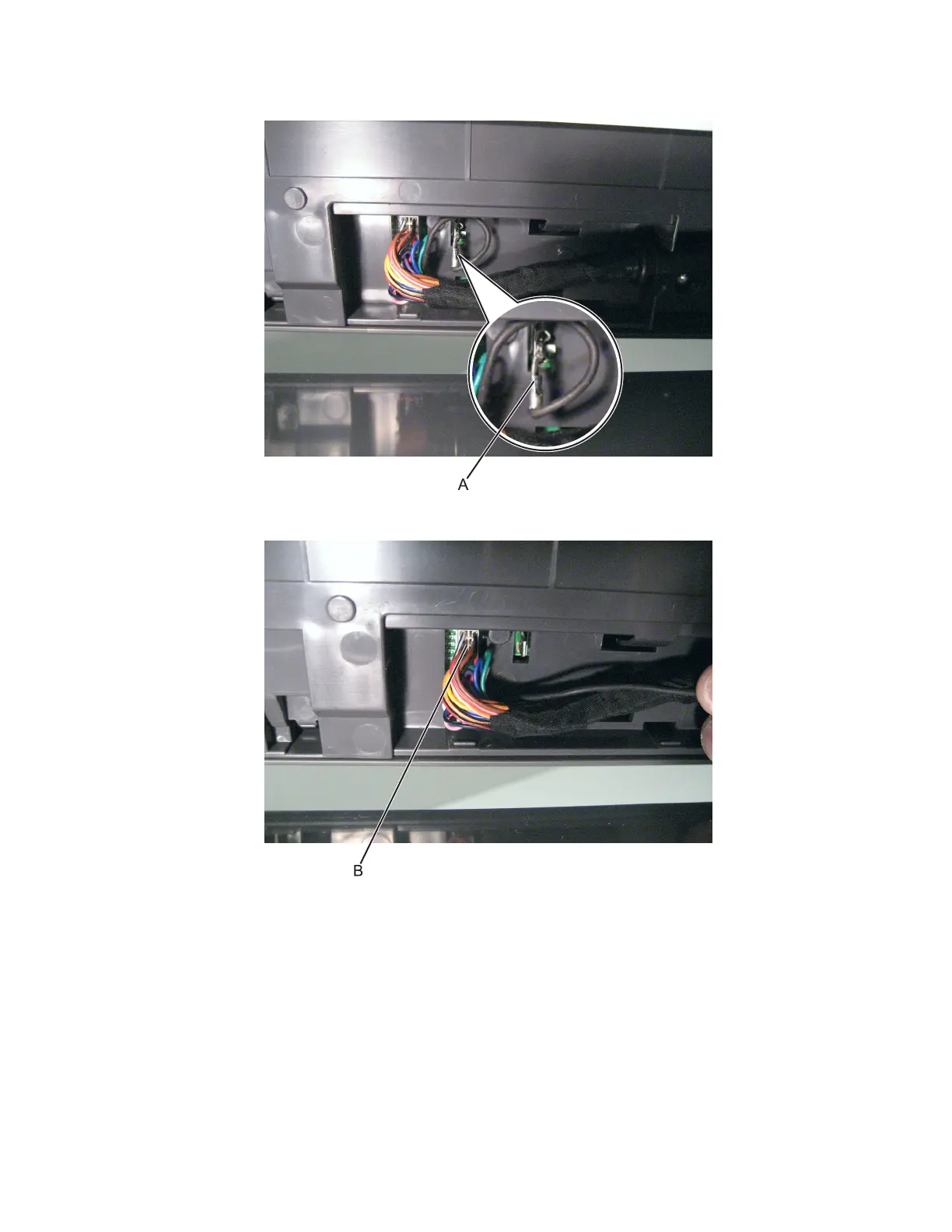

3 Disconnect the blade fastener (A) holding the ground cable to the ADF relay board.
4 Disconnect the ADF cable (B) from the ADF unit.
5 Route the cable o the ADF unit.
7016
Repair information
363
