Lexmark 7016-670 - Page 301

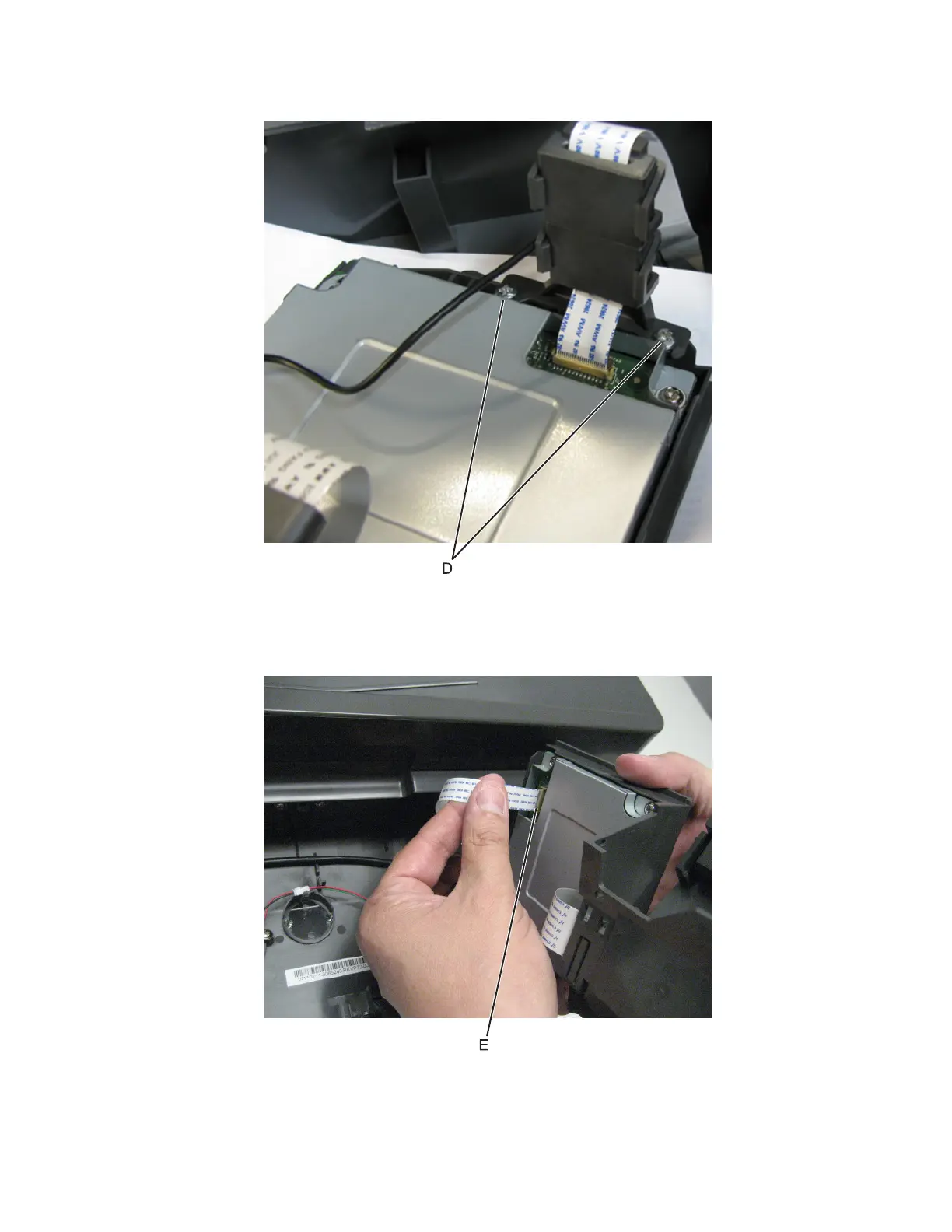

8 Remove the two screws (D) securing the toroid bracket to the control panel cover.
9 Unlock the connector (E) on the UICC and disconnect it from the UICC.
Warning—Potential Damage: The ZIF connector is prone to damage. Extra care is required in handling
this part.
7016
Repair information
301
