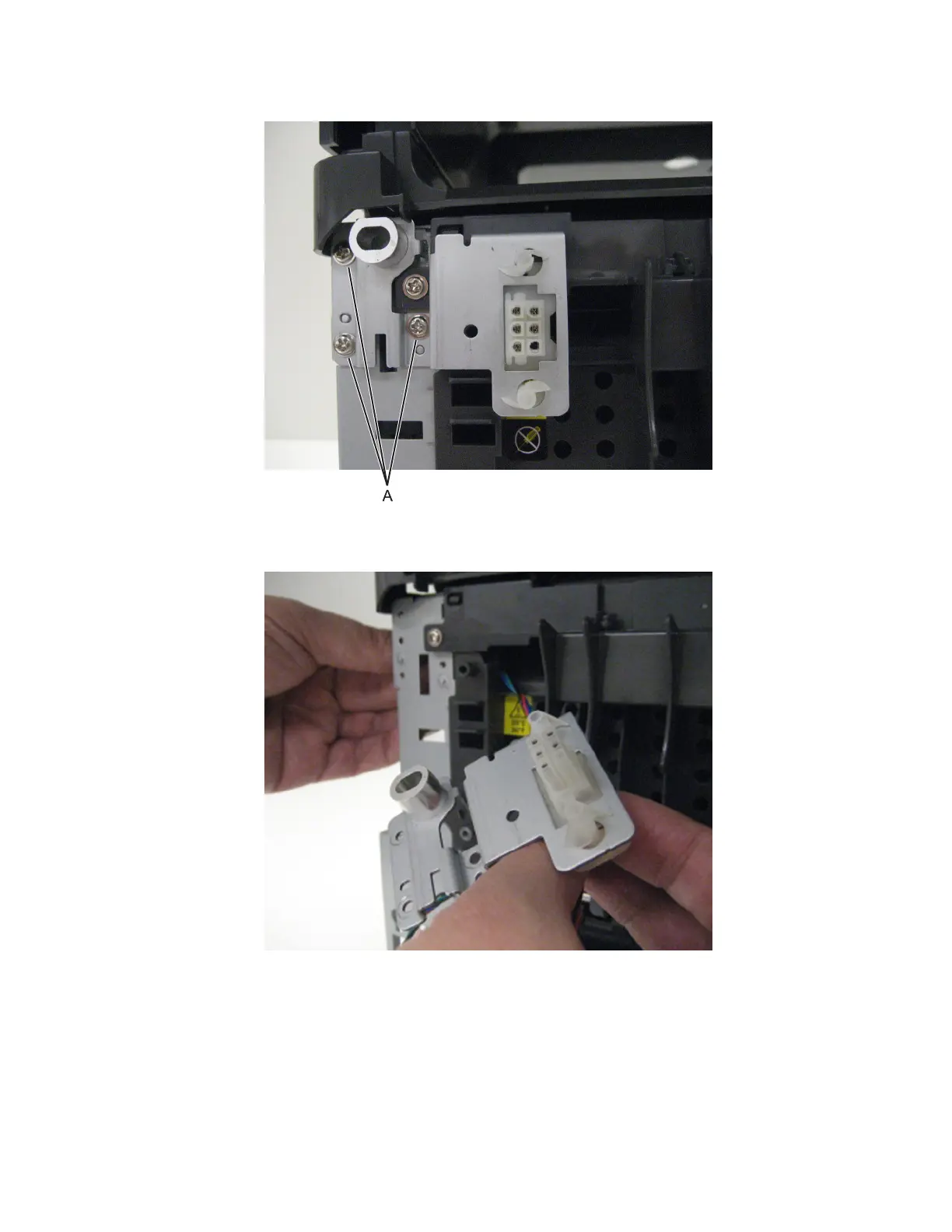

5 Remove the three screws (A) from the mounting bracket.
6 Remove the stapler cable and mounting bracket from the printer frame while feeding the cable through the
redrive unit and printer frame.
7016
Repair information
348
