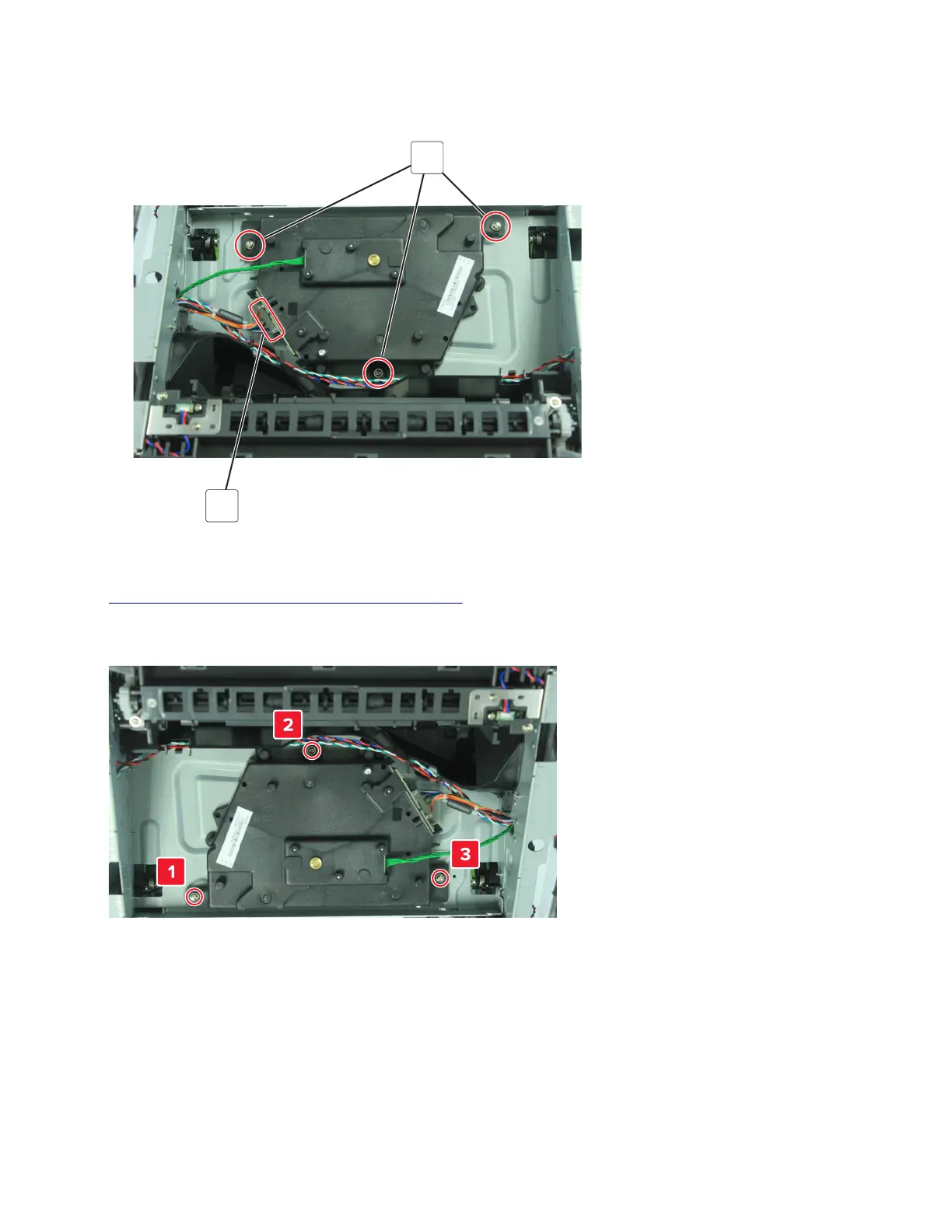

• For the Polygon LSU, disconnect the cable (A), remove the three screws (B), and then disconnect the
cable JLSU1 from the controller board.
A
B
Installation notes:
• Mechanical and electronic LSU adjustments are required to complete the installation of the LSU. See
“Printhead assembly adjustments” on page 261.
• When reinstalling the polygon LSU, make sure to follow the sequence, as indicated by the number, in the
tightening of the screws; otherwise, 111.xx error would occur.
7016
Repair information
358
