Lexmark 7016-670 - Page 373

3 Remove the fan.
4 Remove the scanner front cover. See “Scanner front cover removal” on page 361.
5 Remove the control panel assembly. See “Control panel assembly removal” on page 298.

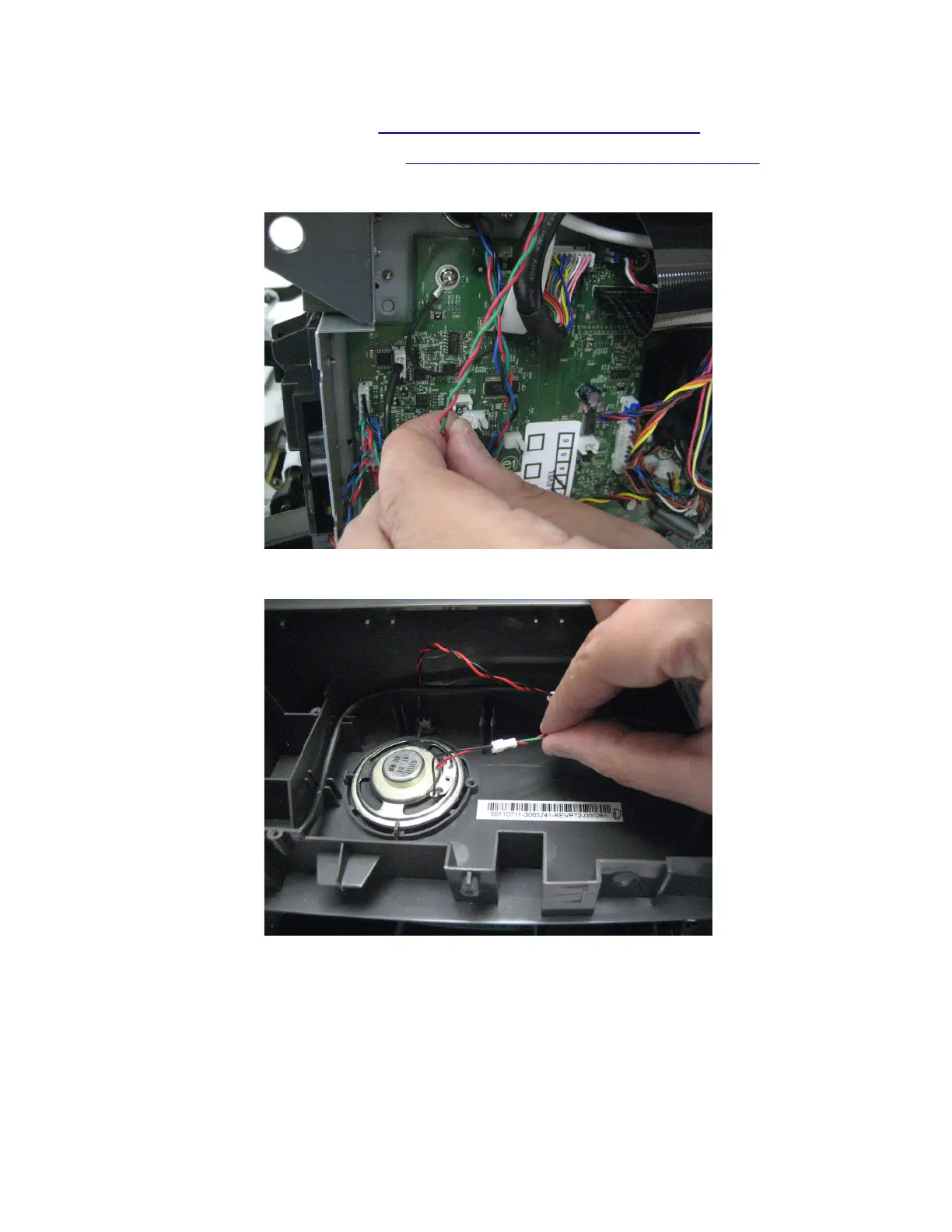

6 Disconnect the speaker cable from the controller board.
7 Disconnect the speaker cable from the speaker.
7016
Repair information
373
