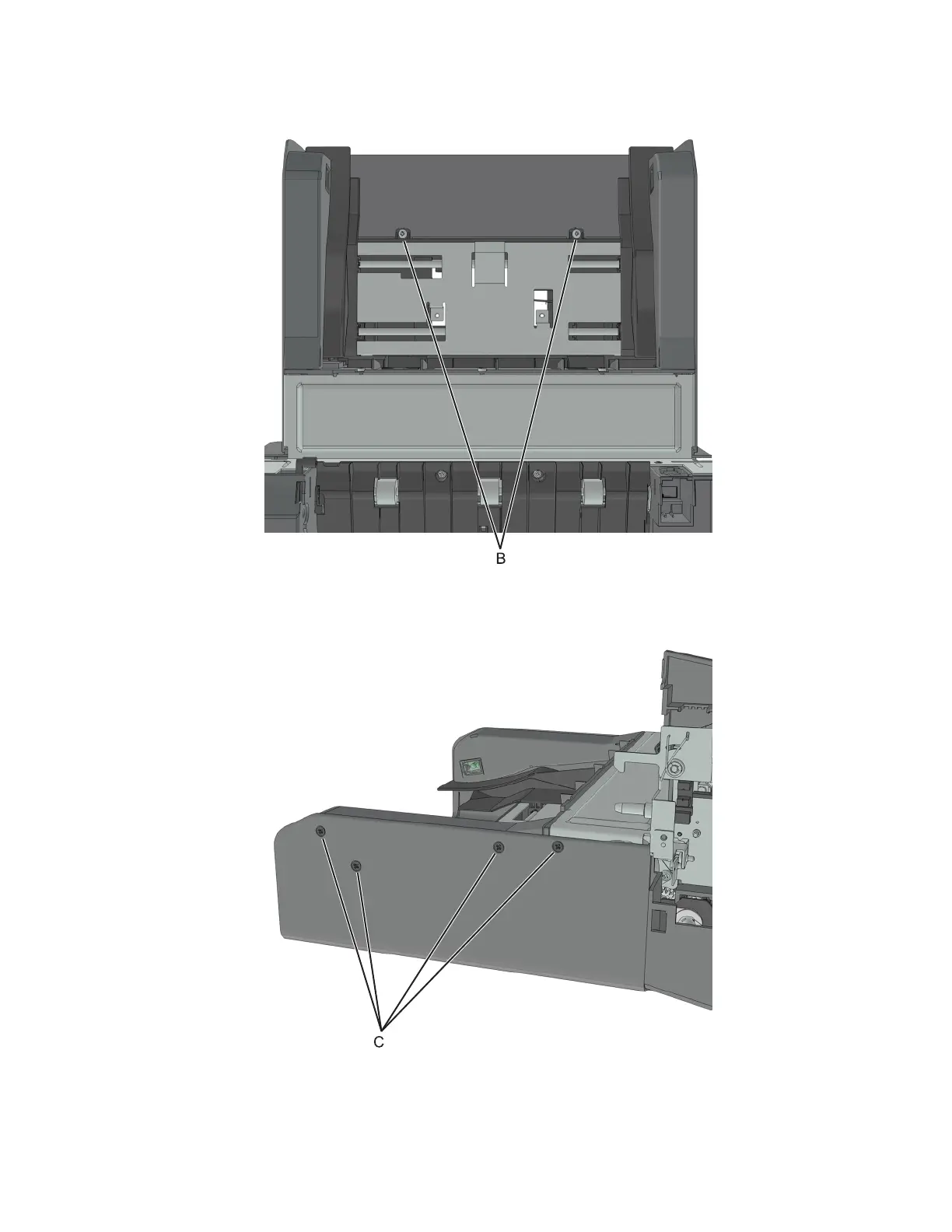

7 Remove the two screws (B) under the cover.
8 Remove the four screws (C) from the left side of the cover.
9 To access the sensor, release the sensor cover from the left side of the top cover.
