Repair information 4-31
5026
Output bin extension cover removal
See “Output bin extension cover” on page 7-3 for the part number.
1. Turn the printer around, so the back is toward you.
2. Rotate the output bin extension cover toward the front of the printer.

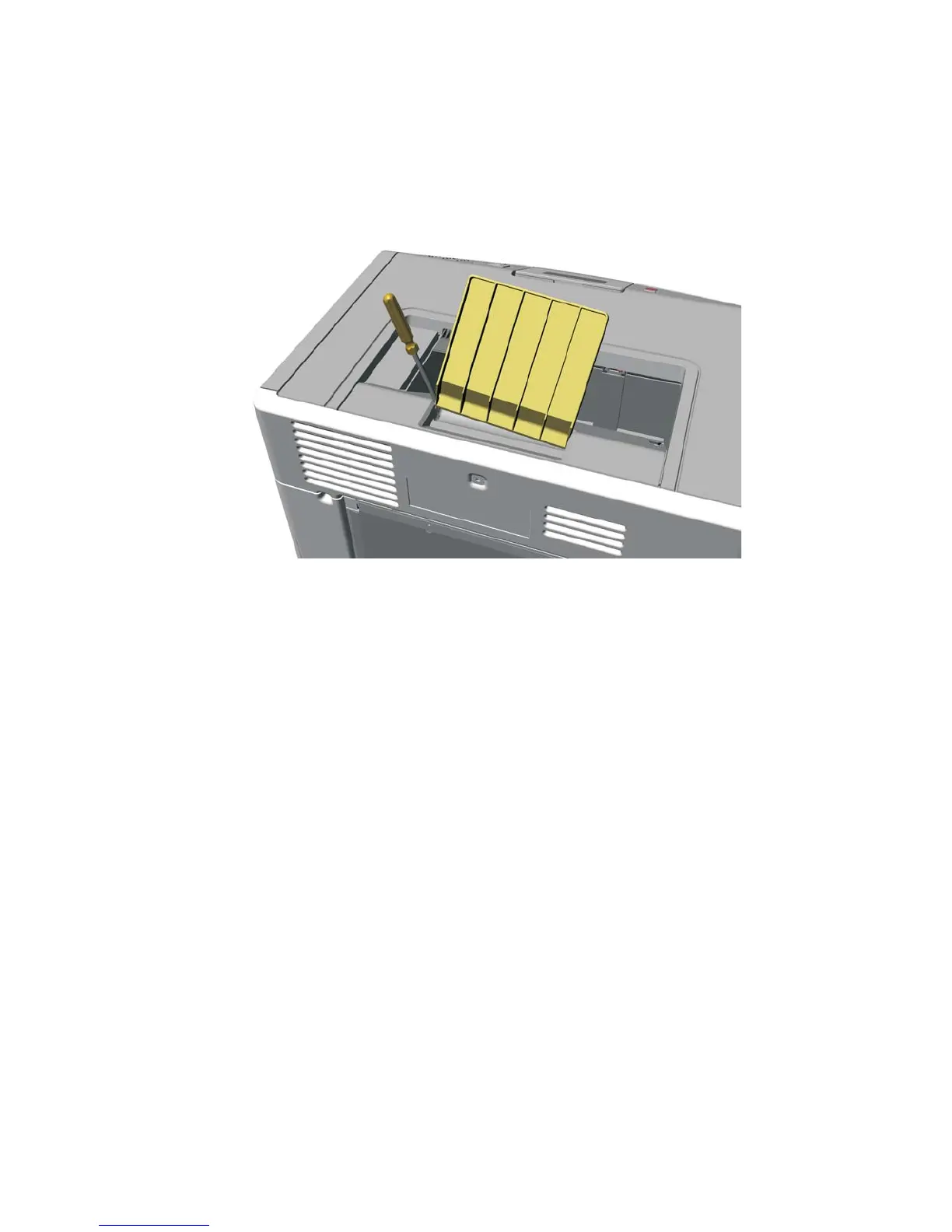

3. Use a flathead screwdriver to ease the posts from the holes on one side.
