Lexmark C734 - Rear Frame Cover Removal

To Next Page

To Previous Page

Repair information 4-33

5026

Rear frame cover removal

See “Rear frame cover” on page 7-3 for the part number.

1. Remove paper tray

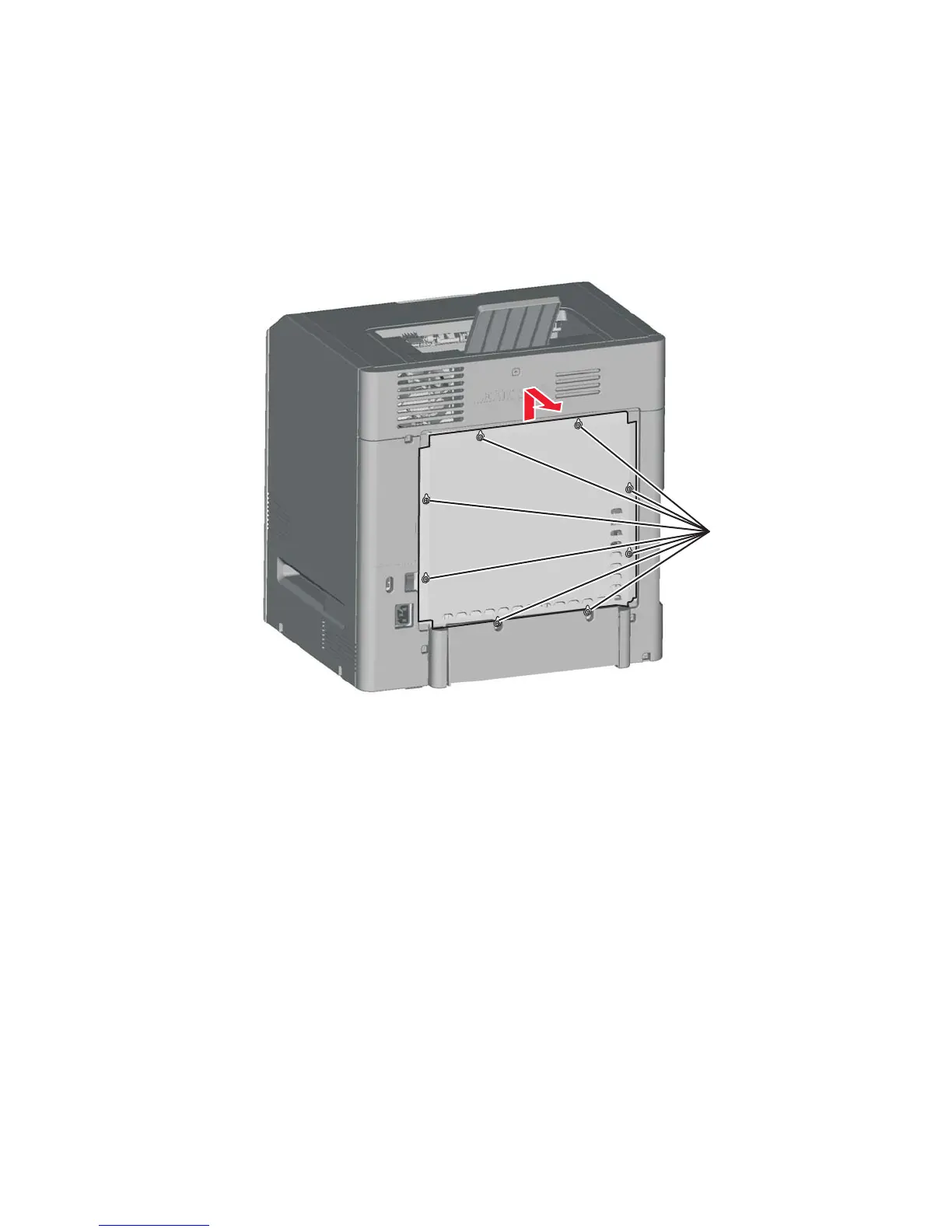

2. Loosen the eight screws (A) on the rear frame cover.

Note: Do not remove the screws.

3. Lift up on the rear frame cover to remove it from the back of the printer.
