4-166 Service Manual

5026

HCIT rear cover removal

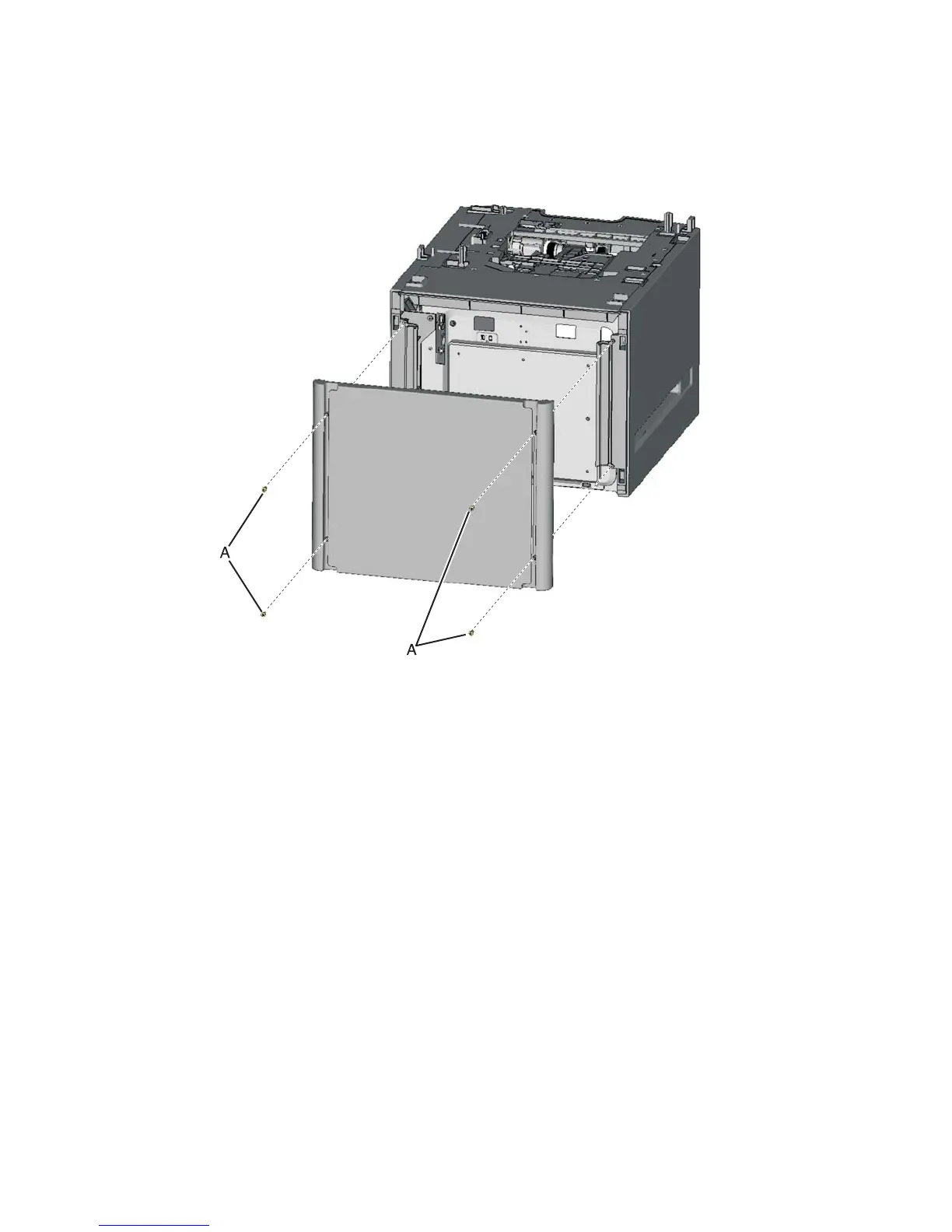

1. Remove the four screws (A) securing the HCIT rear cover to the drawer.

2. Remove the HCIT rear cover.
