122

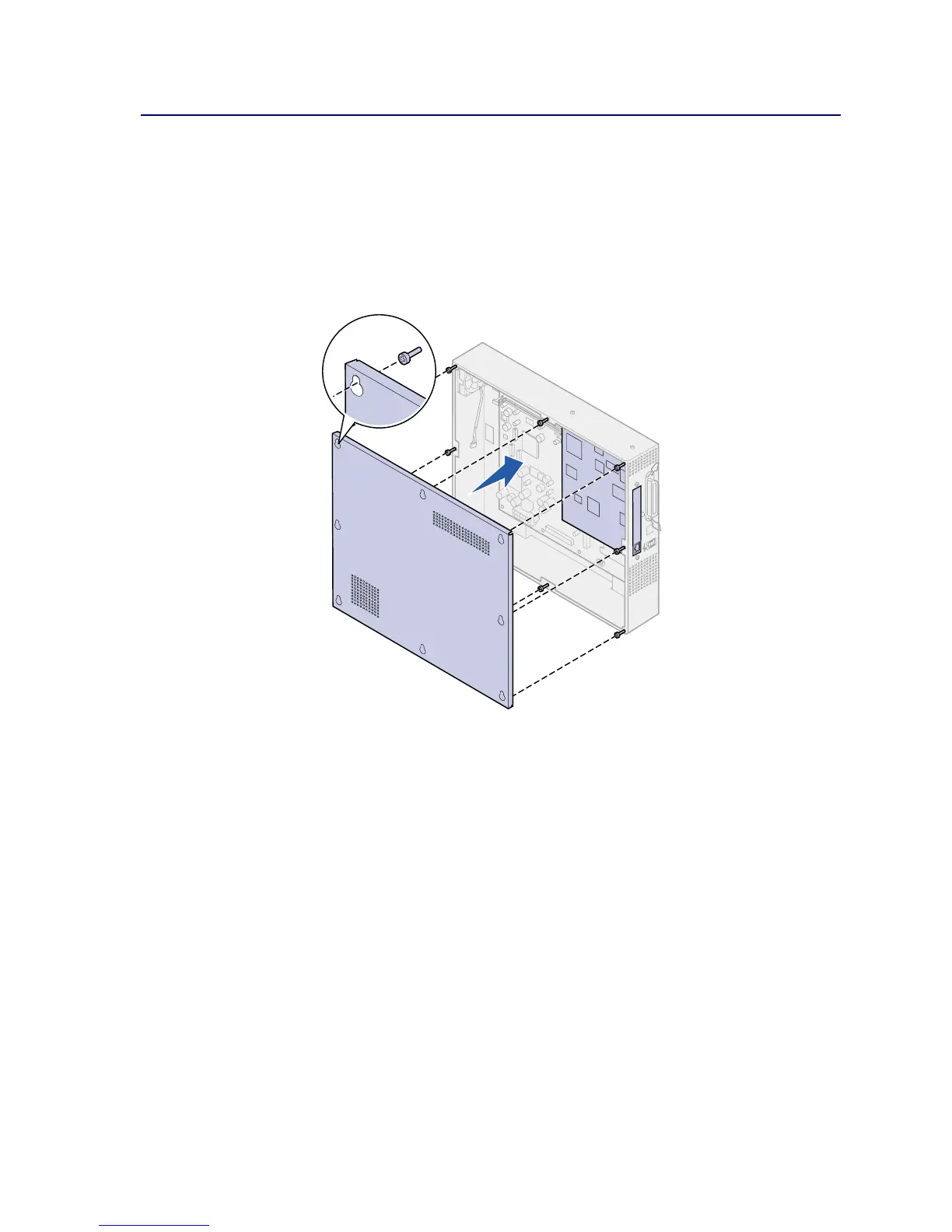

Installing the system board access cover
After you have removed the options, complete the following steps to install the cover and system
board.
You need a number 2 Phillips screwdriver to install the cover.
1 Make sure the printer is off and unplugged.
2 Align the holes on the access cover with the screws.
