Maintenance
Removing the system board access cover
You must remove the system board access cover to install memory cards, a firmware card, a hard
disk, or an option card.
CAUTION: This printer weighs 80.5 kg (177 Ib) and requires four people to lift. Anytime you
move or lift the printer make sure you have enough people to help. Use the
handholds located on the sides to lift the printer.
1 Move the printer or place it in an area that will be convenient for removing the cover and
components.
You need a number 2 Phillips screwdriver to remove the cover and system board.

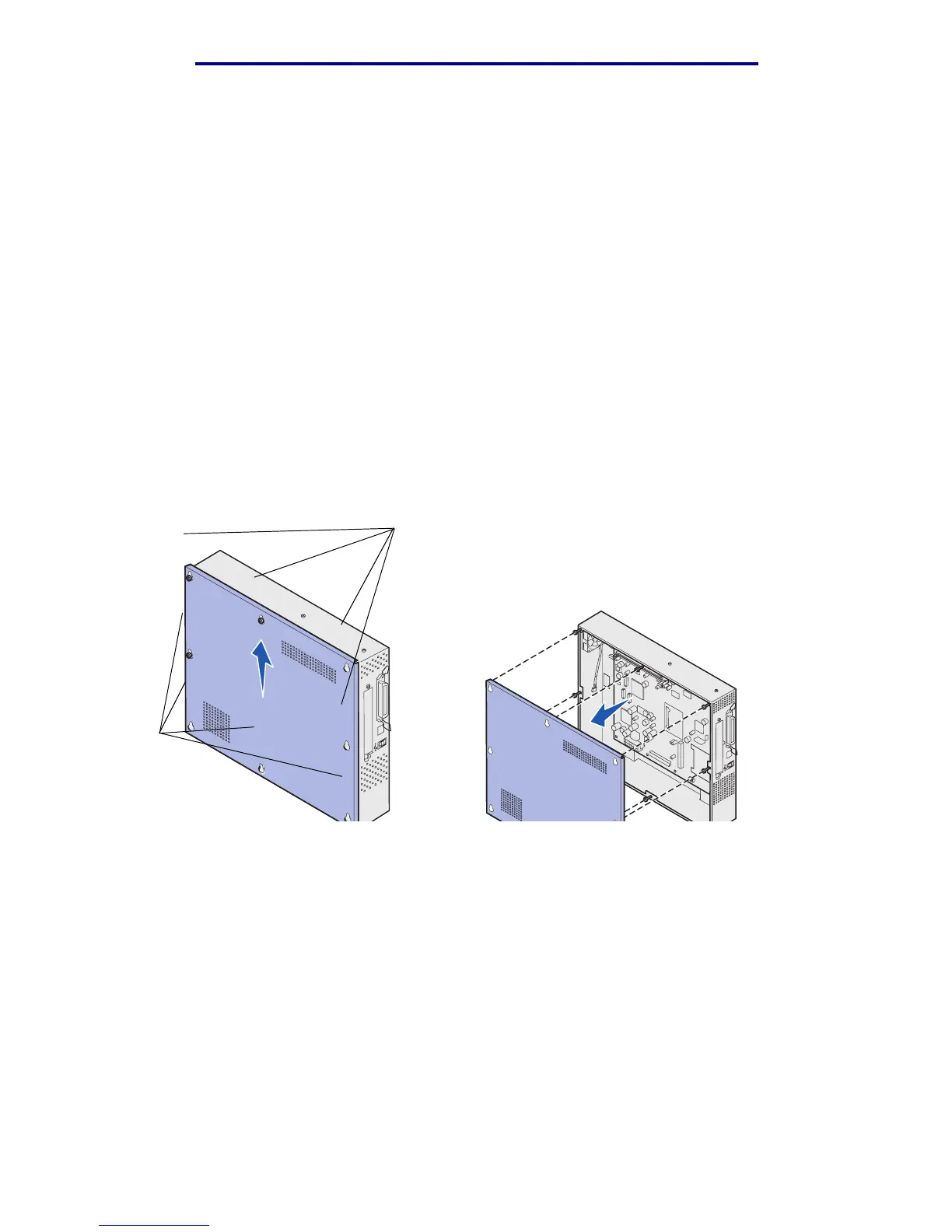

2 Loosen the eight screws on the cover. Do not remove the screws completely.
3 Slide the cover up and away from the printer.
Warning: The system board access cover must be replaced before operating the printer.
Screws
Screws
Removing the system board access cover
184
