Lexmark CX310dn Service Manual

Blinking amber The printer is waking from entering hibernation mode.
Blinking amber for 0.1 second, then goes completely off for 1.9
seconds in pulsing pattern.
The printer is in hibernation mode.
Understanding the home screen for CX410 and CX510 models
When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen
buttons and icons to initiate an action such as copying, faxing, or scanning; to open the menu screen; or to respond to
messages.
Note: You home screen may vary depending on your home screen customization settings, administrative setup, and
active embedded solutions.
For CX410 models

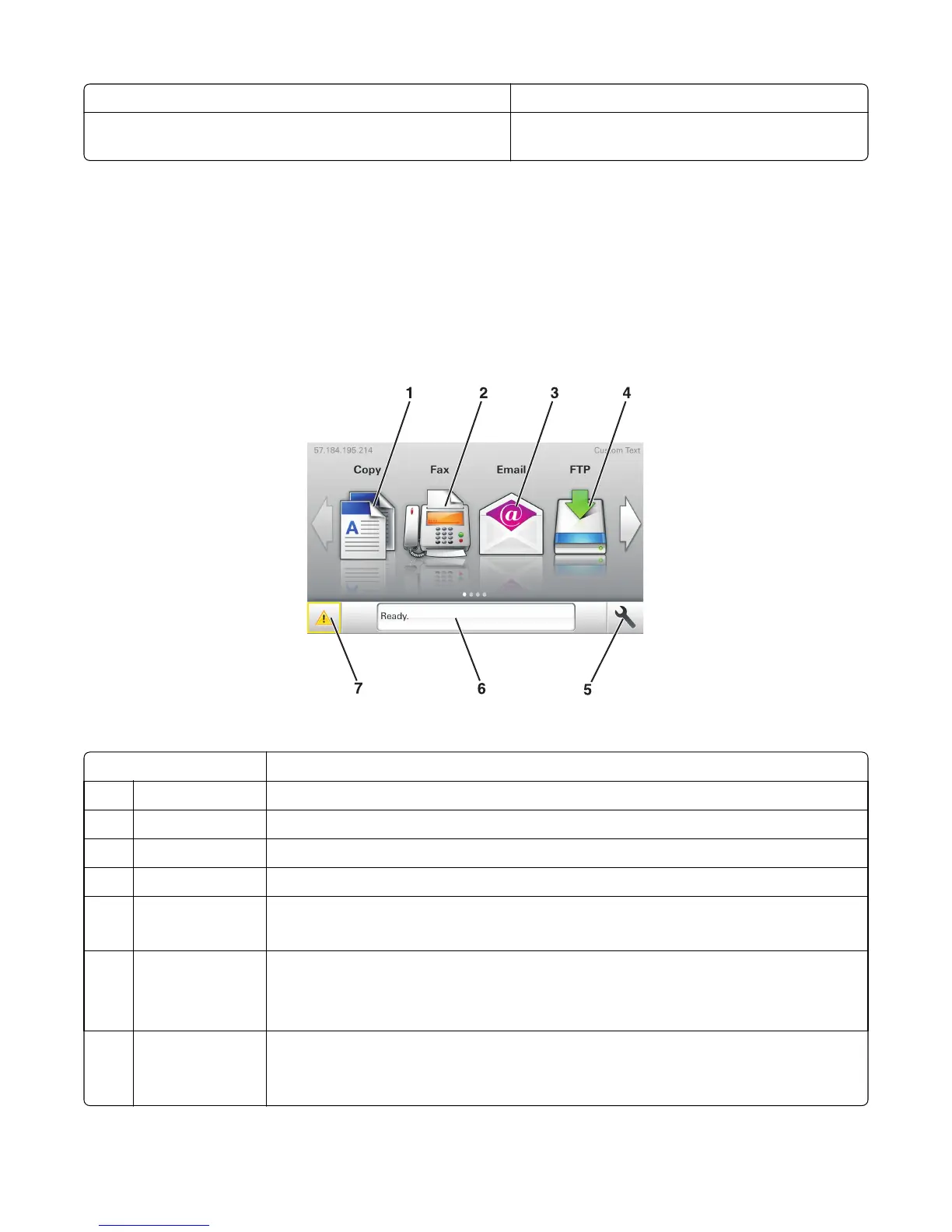

Home screen for CX410 models
Touch To
1 Copy Accesses the Copy menus and makes copies
2 Fax Accesses the Fax menus and sends faxes
3 E‑mail Accesses the E‑mail menus and sends e‑mails.
4 FTP Accesses the File Transfer Protocol (FTP) menus and scan documents directly to an FTP server
5 Menu icon Accesses the printer menus
Note: The menus are available only when the printer is in ready state
6 Status message bar
• Shows the current printer status such as Ready or Busy
• Shows printer supply conditions such as Imaging unit low or Cartridge low
• Shows intervention messages and the instructions on how to clear them
7 Status/Supplies
• Shows a printer warning or error message whenever the printer requires intervention to
continue processing
• View more information on the printer warning or message, and on how to clear it
7527
Service menus
158

Lexmark CX310dn Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	11.5 s
Time to first page (color, normal)	12.5 s
Print speed (black, normal quality, A4/US Letter)	23 ppm
Duplex print speed (black, normal quality, A4/US Letter)	12 ppm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	copy, print, scan
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	60000 pages per month
Recommended duty cycle	500 - 5000 pages per month
Number of print cartridges	5
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PDF 1.7, PostScript 3, PPDS
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	23 cpm
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Scan speed (color)	32 ppm
Optical scanning resolution	600 x 1200 DPI
Total input capacity	251 sheets
Total output capacity	150 sheets
Maximum input capacity	901 sheets
Total number of input trays	1
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	50 sheets
Paper tray media types	Card stock, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 176 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black, Grey
Display diagonal	2.4 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk
Supported network protocols (IPv6)	TCP/IP IPv6, TCP, UDP
Internal memory	512 MB
Processor frequency	800 MHz
Maximum internal memory	2560 MB
Sound power level (standby)	16 dB
Sound pressure level (copying)	48 dB
Sound pressure level (printing)	47 dB
Sound pressure level (scanning)	49 dB
Sound pressure level (duplex printing)	50 dB
Power consumption (average operating)	- W
Package depth	594 mm
Package height	567 mm
Package weight	31430 g
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Linux operating systems supported	Fedora 14, Fedora 15, RedHat EL Linux 4.0 U5, RedHat EL Linux 4.0 U6, RedHat EL Linux 4.0 U7, RedHat EL Linux 5.0, RedHat EL Linux 5.1, RedHat EL Linux 5.2, RedHat EL Linux 5.3, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64

Weight and Dimensions

Depth	558 mm
Width	444 mm
Height	470 mm
Weight	27390 g
