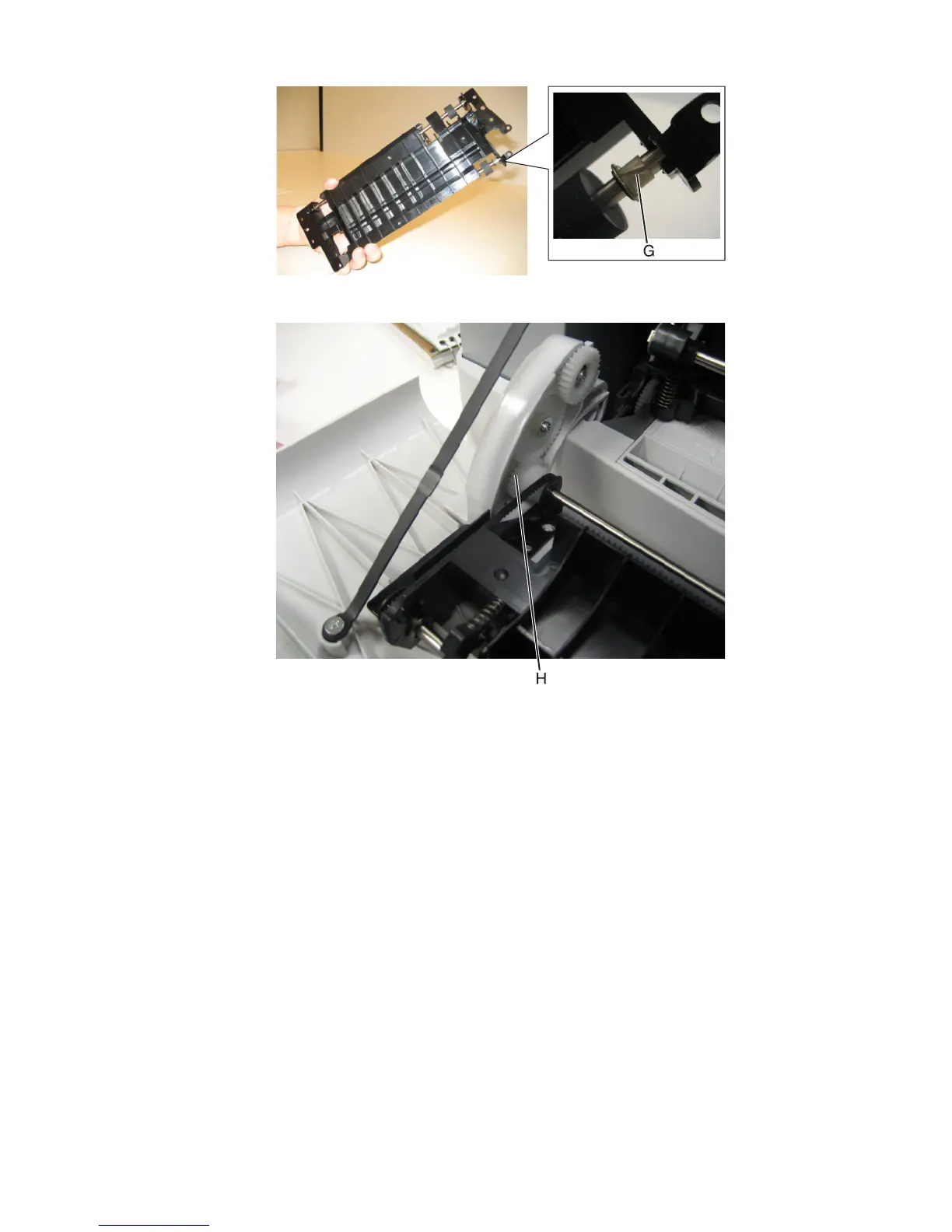

d Align the duplex aligner guide so that the gears (H) mesh on the left.

e Replace the eight screws in the duplex aligner.

f Close the front door.

7527

Repair information

243
