Lexmark E460DN Service Manual

Repair information 4-47
4513-630, -63W, -6EW

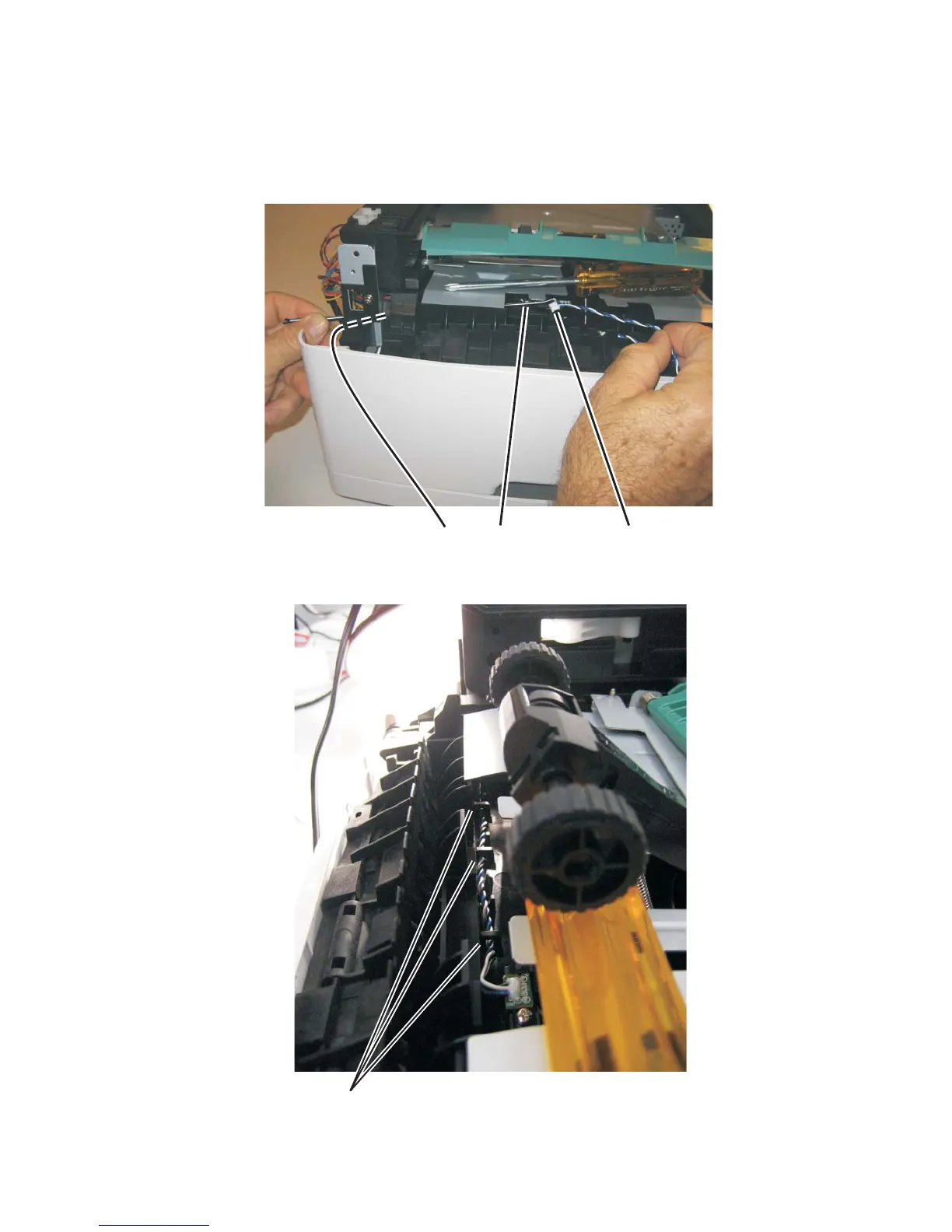

Re-installation note:
• Prop open the duplex door, and insert the hook end of the spring hook through the frame opening (C) from
the controller board side. Extend the hook until the sensor connector can be hooked.
• Hook the spring hook (D) to the connector (E), and pull it through the opening.
• Place the sensor into position, and reconnect the cable on the controller board.
• Using the spring hook, be sure to reroute the cable through the three retainers (F) between the sensor and
side frame.
Note: If the cable is not properly installed in its retainers, then the loose cable will obstruct the paper path.
EDC
F

Lexmark E460DN Specifications

General

Color	No
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	64 MB
Processor frequency	466 MHz
Maximum internal memory	576 MB
Sound pressure level (printing)	53 dB
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, IPX/SPX, AppleTalk, LexLink (DLC), TCP/IP IPv6, TCP, UDP
Recommended media weight	75 g/m²
Compatible operating systems	Windows 2000/ME/XP/98/XP Pro/Server 2003/2003 x64 Mac OS X, Mac OS 9.x
Maximum duty cycle	80000 pages per month
Sustainability certificates	ENERGY STAR
Operating altitude	0 - 2500 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	FCC Class B, UL 60950-1 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

Weight and Dimensions

Weight	14030 g
Dimensions (WxDxH)	406 x 370 x 260 mm
