General information 1-7
4513-630, -63W, -6EW
Tips on preventing jams

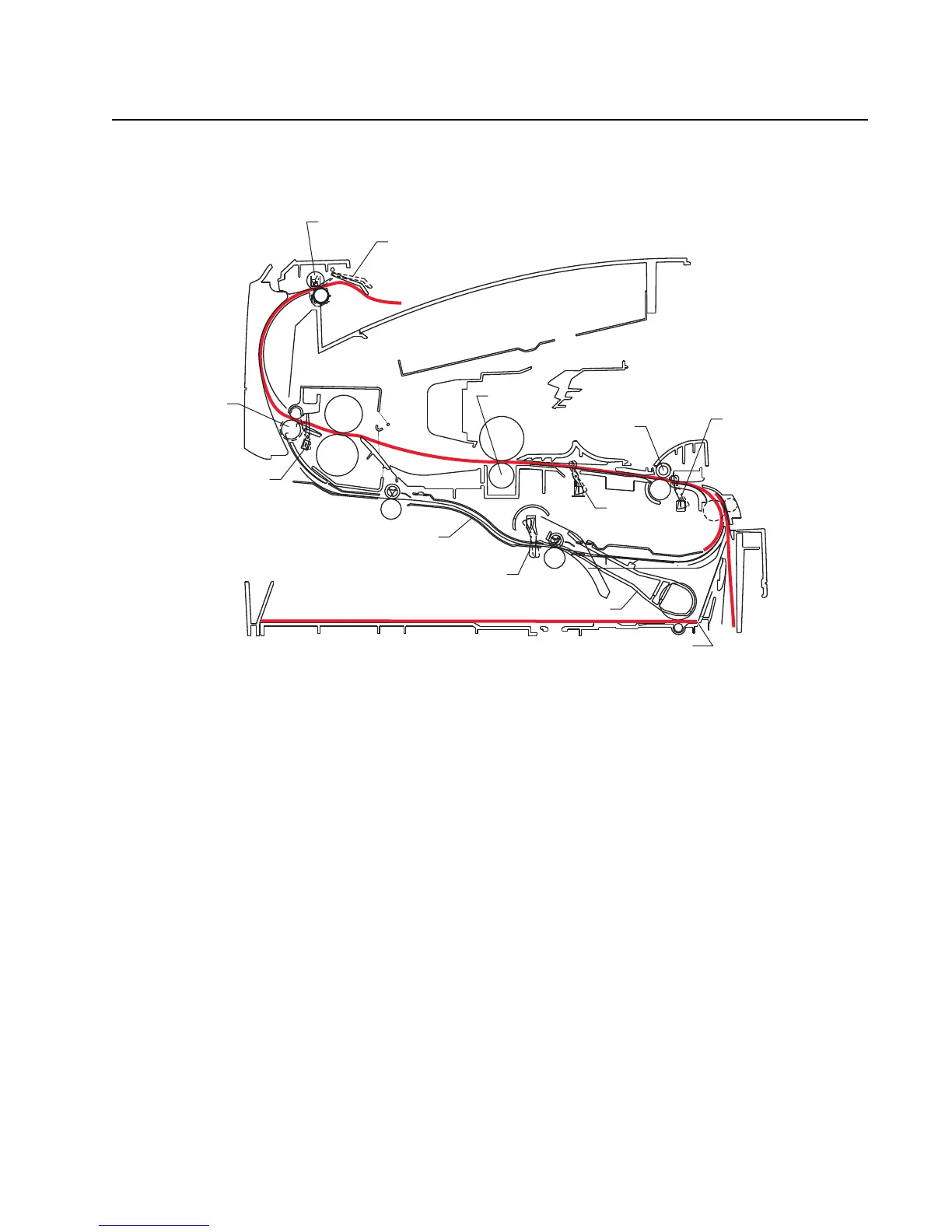

Paper path
A Paper path A – B 125.3 mm
B Manual feed sensor B – C 9.0 mm
C Upper end feed rolls C – D 59.8 mm
D Input sensor D – E 44.9 mm
E Transfer roll E – F 112.7 mm
F Fuser F – G 21.4 mm
G Fuser exit rolls G – H 114.8 mm
H Fuser exit sensor H – I 7.5 mm
I Exit rolls I – J 17.0 mm
J Exit sensor/narrow media sensor I – K 211.7 mm
K Duplex unit K – L 93.4 mm
L Duplex sensor L – M 8.4 mm
M Auto compensator
G
H
K
L
D
M
A
B
C
E
F
J
I
