4-52
4513-630, -63W, -6EW
Multipurpose feeder (MPF) feed clutch removal
1. Remove the left side cover. See “Left side cover removal” on page 3-25.
2. Remove the duplex. See “Duplex removal” on page 3-11.

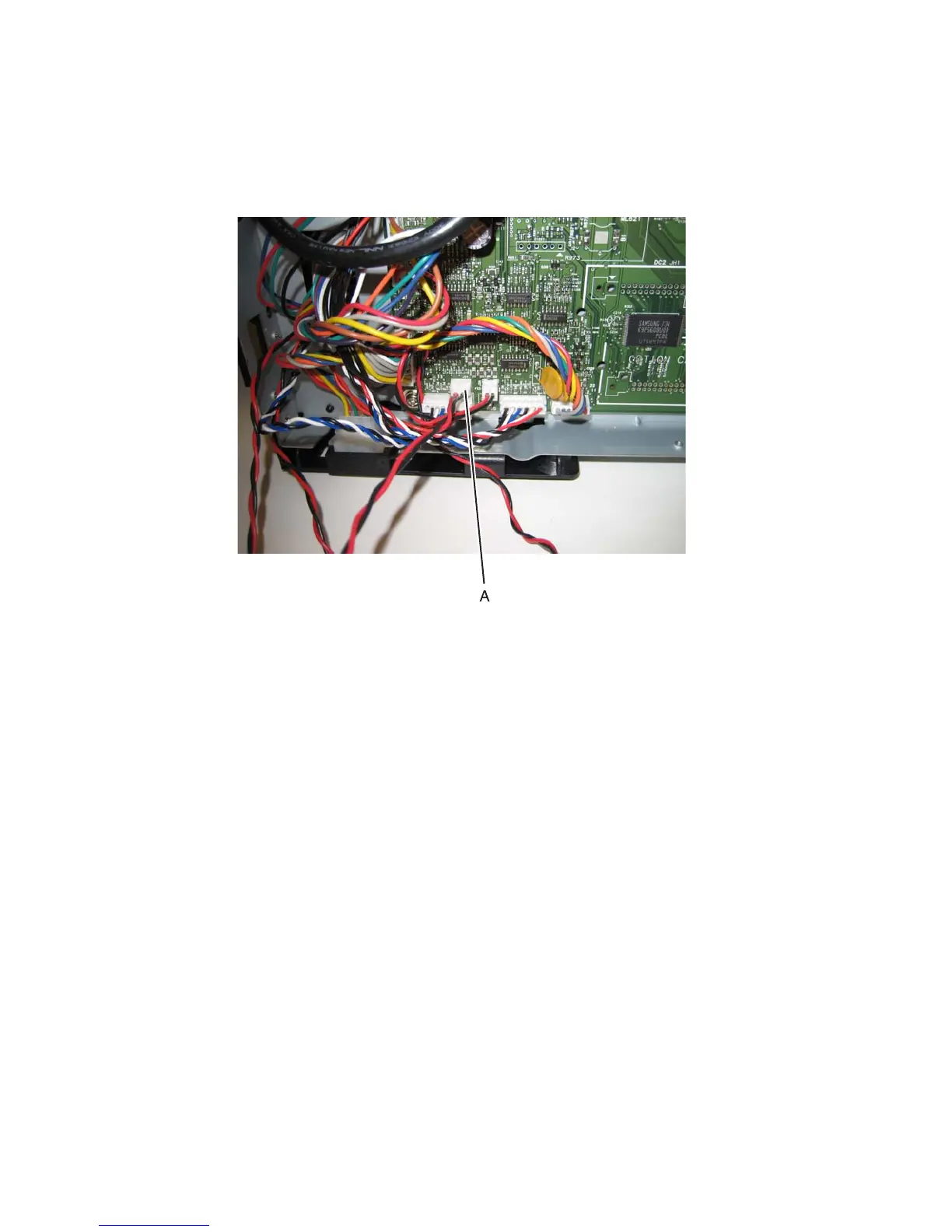

3. Disconnect the cable (A) from the controller board.
4. Place the printer on its right side.
Note: Be careful to not damage any cables or mar the finish of the printer.
