Lexmark E460DN - Page 151

Repair information 4-61
4513-630, -63W, -6EW

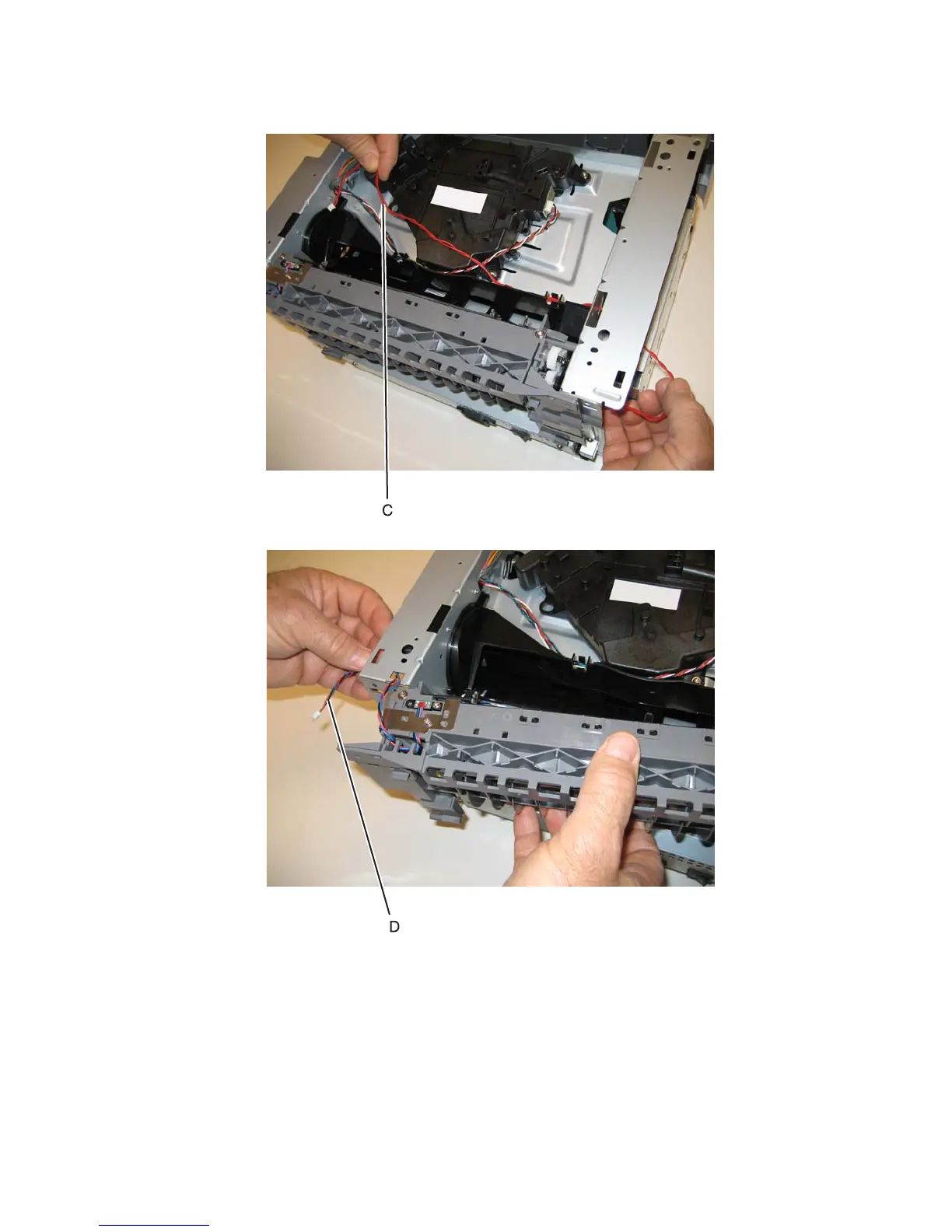

5. Remove the solenoid cable (C) through the opening.
6. Remove the narrow media sensor cable (D) through the opening.
7. Remove the rear exit guide assembly.
Note: Be careful to not damage the gears during the rear exit guide assembly removal and reinstallation.
