Installing the interface card
76
Installing and removing options
Installing the interface card
Warning: Interface cards are easily damaged by static electricity. Touch something metal such as the printer
frame before you touch an interface card.

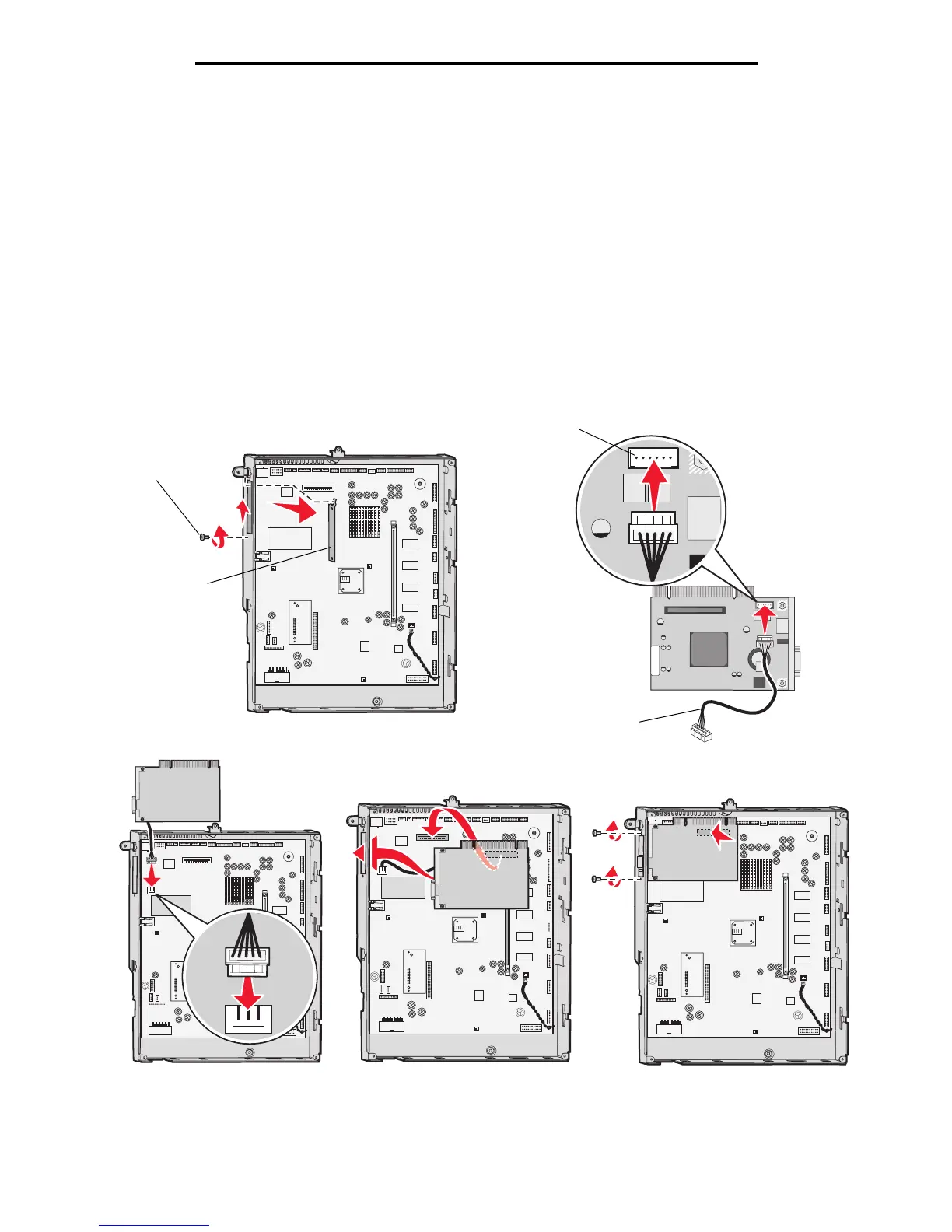

1 Locate the card connectors on the system board.
2 Remove the screw and the cover plate, and save them.
3 Unpack the scanner interface card and cable. Save the packaging materials.
a Connect the USB interconnect cable to the card.
b Connect the USB interconnect cable to the system board.
4 Align the connection points on the card with the connector on the system board, and push the card firmly into the
system board connector.
5 Insert the screw saved from the cover plate (or the extra screw shipped with the card).
6 Tighten the screw to secure the card.
Screw
Cover plate
USB interconnect
cable
Connector
