Lexmark T640 - Redrive Cap Cover Removal; Paper Support Removal

To Next Page

To Previous Page

4-6 Service Manual

4061-xx0

Redrive cap cover removal

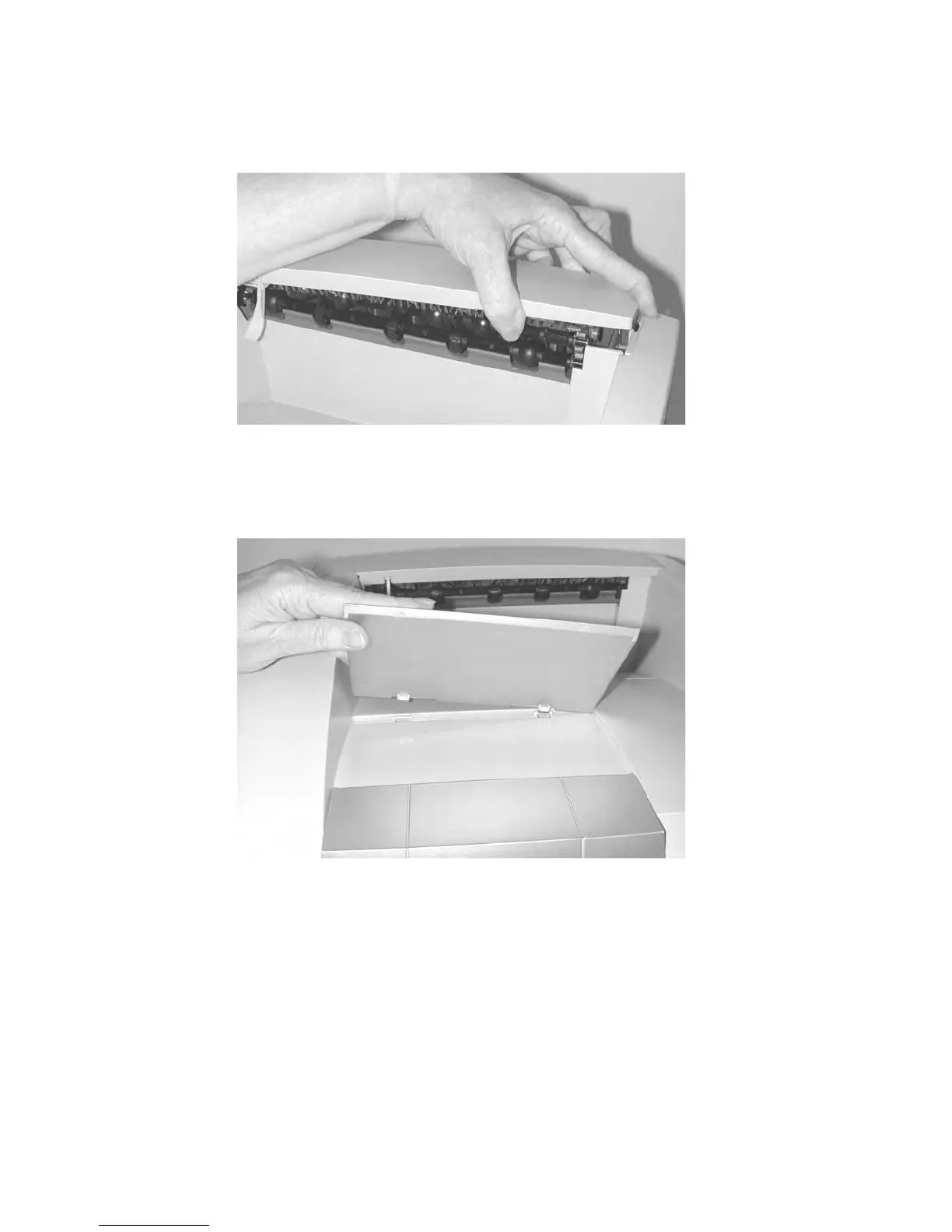

Pull up on the right side of the redrive cap cover to remove.

2. Remove the redrive cap cover.

Paper support removal

Raise the paper support, and lift to release the latches.

2. Remove the paper support.
